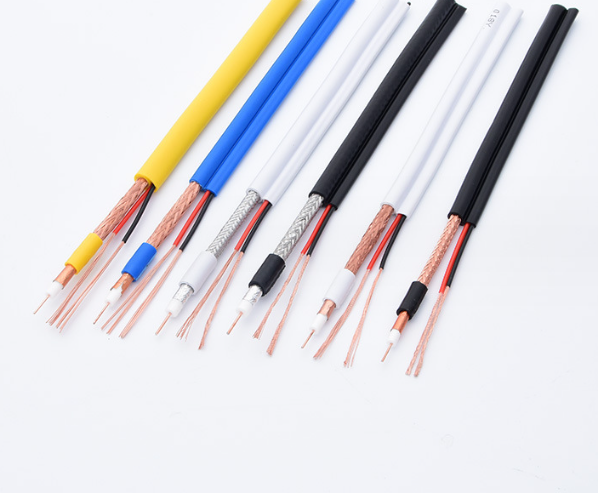

- 產品名稱：AVPV聚氯乙烯絕緣安裝屏蔽電纜PVC insulated installation shielded cable
- 瀏覽：
- 添加時間：2024-03-19 16:08:38
- 推薦度：
AVPV_安裝用電纜使用特性：
1、 導體長期允許工作溫度為70℃。
2、敷設時環境溫度≥0℃。
3、***小彎曲半徑：
4、無鎧裝層電纜，應不小于電纜外徑的6倍。
5、有鎧裝或銅帶屏遮結構電纜，應不小于電纜外徑的12倍。
6、有屏遮結構的軟電纜，應不小于電纜外徑的6倍。AVPV聚氯乙烯絕緣安裝屏蔽電纜 執行標準： Q/FYC005-91使用條件： 使用溫度 -40～70℃。相對濕度 AVV、AVPV型為98%以下。額定電壓： 交流（50Hz）380V。直流500V。試驗電壓： 交流50Hz，1000V。絕緣電阻： 20℃時，大于0.5MΩ·km。
應用領域： 適用于固定敷設供交流電壓380V及以下或直流電壓500V及以下儀器、電器設備。交貨長度： 交貨長度為100m成圈
AVPV_ Installation cable usage characteristics:
1. The long-term allowable working temperature for conductors is 70 ℃.
2. The ambient temperature during laying is ≥ 0 ℃.
3. Minimum bending radius:
4. For cables without armor layer, it should not be less than 6 times the outer diameter of the cable.
5. Cables with armored or copper tape shielding structures should not be less than 12 times the outer diameter of the cable.
6. Soft cables with shielding structures should not be less than 6 times the outer diameter of the cable. AVPV PVC insulated installation shielded cable execution standard: Q/FYC005-91 Service conditions: Service temperature -40~70 ℃. The relative humidity of AVV and AVPV types is below 98%. Rated voltage: AC (50Hz) 380V. DC 500V. Test voltage: AC 50Hz, 1000V. Insulation resistance: greater than 0.5M Ω· km at 20 ℃.
Application field: Suitable for fixed installation of instruments and electrical equipment with AC voltage of 380V and below or DC voltage of 500V and below. Delivery length: The delivery length is 100m in a circle
