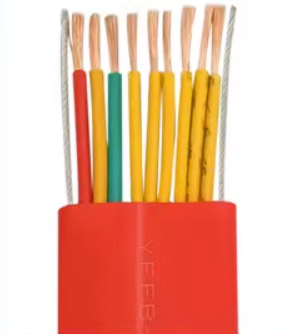

- 產品名稱：YVFBR扁平電纜 YVFBR flat cable
- 瀏覽：
- 添加時間：2024-03-20 14:48:12
- 推薦度：
YVFBR扁平電纜使用于工作電壓450/750V級以下，環境溫度-40~70℃的起重、運輸、機械、電氣、礦山、等行業各種移動動力裝置的電源連接及控制信號照明等。YVFBR flat cable is used for power connection and control signal lighting of various mobile power devices in industries such as lifting, transportation, machinery, electrical, mining, etc. with working voltage below 450/750V level and ambient temperature of -40~70 ℃.
產品用途
一：扁電纜特點及用途:扁電纜適用于交流額定電壓0.6/1KV及以下固定敷設用動力傳輸線或移動電器用連接電纜，
產品具有耐熱輻射、耐寒、耐酸堿及腐蝕性氣體、防水等特性，電纜結構柔軟，輻射方便，高溫(高寒)環境下電氣性能穩定，
抗老化性能突出，使用壽命長，廣泛用于冶金、電力、石化、電子、汽車制造等行業。
Product Usage
1： Characteristics and applications of flat cables: Flat cables are suitable for fixed power transmission lines
or connecting cables for mobile appliances with rated AC voltage of 0.6/1KV and below,
The product has characteristics such as heat resistance, radiation resistance, cold resistance, acid and alkali resistance, corrosive gases resistance, waterproofing, etc. The cable structure is soft,
radiation is convenient, and electrical performance is stable in high temperature (cold) environments,
With outstanding anti-aging performance and long service life, it is widely used in metallurgy,
power, petrochemical, electronics, automobile manufacturing and other industries.
二：扁電纜執行標準 阻燃耐火特性試驗執行GB12666-90要求 ： Flat cables shall be tested for flame retardant
and fire resistance characteristics in accordance with the requirements of GB12666-90
三：使用特性
1． 額定電壓：U0/U 0.6/1KV 工作溫度： 180℃ 低環境溫度：固定敷設-60℃
2． 扁電纜安裝敷設溫度應不低于-25℃。
3． 電纜允許彎曲半徑：電纜小為電纜外徑的15倍
3： Usage characteristics
1. Rated voltage: U0/U 0.6/1KV Working temperature: 180 ℃ Low ambient temperature: Fixed laying -60 ℃
The installation and laying temperature of flat cables should not be lower than -25 ℃.
3. The allowable bending radius of the cable is 15 times the outer diameter of the cable
結構特點
1、導電線芯采用軟結構，確保電纜柔軟性能好。
2、絕緣和保護層材料采用丁聚物，提高電纜柔軟特性和防腐、耐寒特性。
3、絕緣線芯分色，為敷設安裝提供方便。
Structural characteristics
1. The conductive wire core adopts a soft structure to ensure good flexibility performance of the cable.
2. The insulation and protective layer materials are made of butadiene polymer,
which improves the flexibility, corrosion resistance, and cold resistance of the cable.
3. Insulation core color separation provides convenience for laying and installation.
