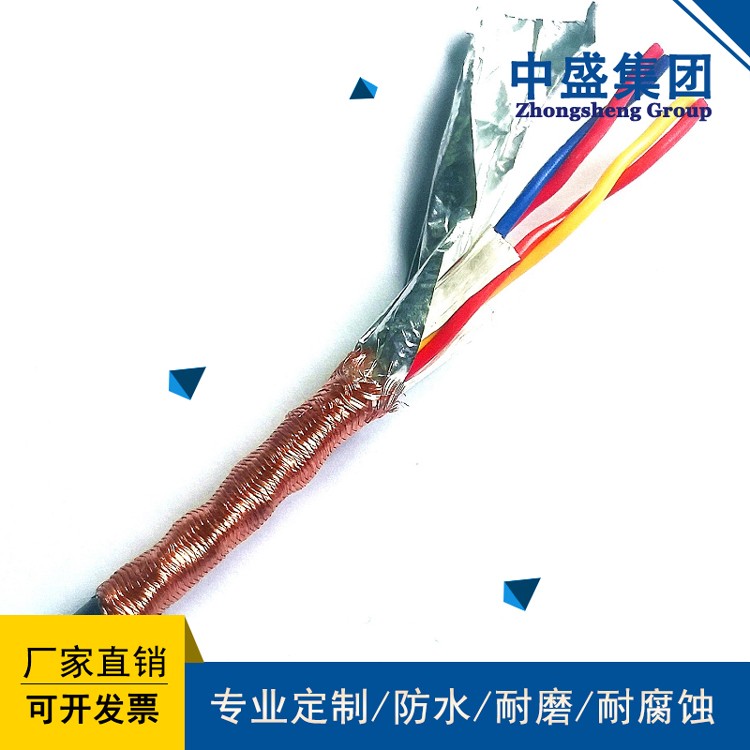

DJYPVP copper core polyethylene insulated polyvinyl chloride sheathed split screen total shielded computer cable
product mix
Product model: DJYPVP
● Conductor: Single bare copper conductor
(Compliant with IEC60228cl.1 standard)
● Insulation: Polyethylene insulation PE mixture
● Twisted: Wrapped with polyester tape or other tape materials
● Sub shielding: Copper wire braided shielding
● Cable formation: wrapped with polyester tape or other tape materials
● Overall shielding: Copper wire braided shielding
● Outer sheath: PVC mixture
● Sheath colors: gray, black, green, blue
Rated voltage: 300/500V
● Test voltage: 1500V/1min (between wire cores); 1000V/1min (between wire core and shielding or armor)
● Temperature range for use: -5 ℃ to+70 ℃
(Mobile installation) Bending radius: 15 × D
● Temperature range for use: -15 ℃ to+70 ℃
(Fixed laying) Bending radius: 8 × D
Flame retardant characteristics: comply with IEC332-1 standard
Application scenarios
Suitable for signal transmission and connection of detection instruments and instruments in electronic computer systems, monitoring circuits, and automation control systems.
