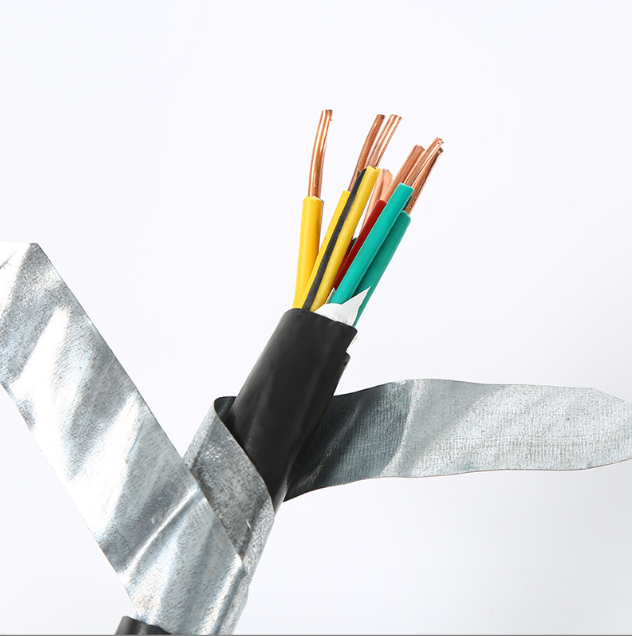

- 產(chǎn)品名稱：Armored control cable ZRC-KVVP22
- 瀏覽：
- 添加時(shí)間：2024-04-03 16:23:50
- 推薦度：
Control Cable ZRC-KVVP22 Product Usage
Suitable for connection wires of control, monitoring circuits and protection circuits with rated voltage U0/U 450/750V and below, mainly used in places where electromagnetic interference is prevented and shielding is required.
Usage conditions of control cable ZRC-KVVP22
The long-term allowable working temperature for cable conductors is 70 ℃, and high temperature resistant shielded cables can reach up to 300 ℃.
The allowable bending radius for cable laying and installation is:
1. Cable without armor layer should not be less than 6 times the outer diameter of the cable.
2. Cables with armored or copper tape shielding structures should not be less than 12 times the outer diameter of the cable.
3. Soft cables with a shielding layer structure should not be less than 6 times the outer diameter of the cable.
Control cable ZRC-KVVP22-0.45/0.75KV-4 * 2.5 Scope of use
1. PVC insulated PVC sheathed shielded control cable
Scope of use of model name
KVVP copper core polyvinyl chloride insulated and sheathed braided shielded control cables are laid in indoor, cable trenches, pipelines and other fixed environments that require shielding
KVVRP copper core polyvinyl chloride insulated and sheathed braided shielded control soft cables are laid in indoor mobile environments that require flexibility and shielding
KVVP2 copper core polyvinyl chloride insulated and sheathed copper tape shielded control cables are laid in indoor, cable trenches, pipelines and other fixed environments that require shielding
KVVP3 copper core polyvinyl chloride insulated and sheathed aluminum-plastic composite tape shielded control cables are laid in indoor, cable trenches, pipelines and other fixed environments that require shielding
KVVP2-22 copper core polyvinyl chloride insulated and sheathed steel strip armored control cables are installed in fixed locations such as indoor, cable trenches, pipelines, and direct burial that can withstand large mechanical external forces
