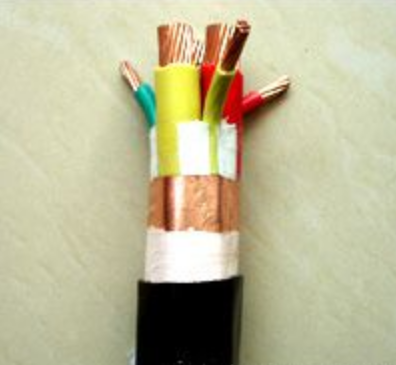

- 產品名稱：Variable frequency power cable BPYJVPP2
- 瀏覽：
- 添加時間：2024-04-17 14:03:33
- 推薦度：
本產品適用于交流額定電壓0.6/1KV及以下變頻控制系統作供電電纜或電氣連接，產品具有較強的耐電壓沖擊性，能經受變頻時的脈沖電壓，電纜具有良好的性，并有效消除電磁干擾，降低變頻電機噪音，保證系統穩定運行。廣泛用于冶金、電力、石化等行業。
This product is suitable for use as a power supply cable or electrical connection in variable frequency control systems with rated AC voltage of 0.6/1KV and below. The product has strong voltage impulse resistance and can withstand pulse voltage during variable frequency conversion. The cable has good performance and effectively eliminates electromagnetic interference, reduces noise from variable frequency machines, and ensures stable system operation. Widely used in industries such as metallurgy, power, and petrochemicals.
使用條件
Usage conditions
1、 額定電壓U0/U：0.6/1KV.
1. Rated voltage U0/U: 0.6/1KV
2、 電纜導體長期允許zui高溫度為70度,短路時zui高溫度250度
2. The cable conductor is allowed to have a high temperature of 70 degrees Celsius for a long time, and a high temperature of 250 degrees Celsius during a short circuit
3、 安裝敷設環境溫度不低于0度,固定敷設時環境溫度不低于-10度.
3. The installation and laying environment temperature shall not be lower than 0 degrees, and the fixed laying environment temperature shall not be lower than -10 degrees
4、 電纜允許zui小彎曲半徑不小于15D(D-電纜外徑,mm)
4. The allowable small bending radius of the cable is not less than 15D (D-cable outer diameter, mm)
產品性能
Product performance
1、 設計采用符合GB/T3956-1997規定的第5類軟絞合銅導體。
1. The design adopts Class 5 soft stranded copper conductors that comply with GB/T3956-1997 regulations.
2、 交聯聚乙烯絕緣、耐溫耐候性好。
2. Crosslinked polyethylene insulation, good temperature and weather resistance.
3、 低傳輸阻抗，電磁兼容性好。
3. Low transmission impedance, good electromagnetic compatibility.
4、 低工作電容
4. Low working capacitance
5、 良好的抗干擾和低輻射性能。
5. Good anti-interference and low radiation performance.
6、 對稱的三芯電纜結構設計，具有比四芯電纜更好的傳輸性能。
6. The symmetrical three core cable structure design has better transmission performance than four core cables.
型號名稱
Model name
BPVVP 聚氯乙烯絕緣和護套銅絲編織屏蔽變頻電力電纜
BPVVP PVC insulated and sheathed copper wire braided shielded variable frequency power cable
BPVVP2 聚氯乙烯絕緣和護套銅帶繞包屏蔽變頻電力電纜
BPVVP2 PVC insulated and sheathed copper tape wrapped and shielded variable frequency power cable
BPVVP3 聚氯乙烯絕緣和護套鋁聚酯復合膜繞包屏蔽變頻電力電纜
BPVVP3 PVC insulated and sheathed aluminum polyester composite film wrapped and shielded variable frequency power cable
BPYJVP 交聯聚乙烯絕緣銅絲編織屏蔽聚氯乙烯護套變頻器電纜
BPYJVP cross-linked polyethylene insulated copper wire braided shielded polyvinyl chloride sheathed frequency converter cable
BPYJVPP2 交聯聚乙烯絕緣銅絲編織屏蔽銅帶繞包屏蔽聚氯乙烯護套變頻器電纜
BPYJVPP2 cross-linked polyethylene insulated copper wire braided shielded copper tape wrapped shielded polyvinyl chloride sheathed frequency converter cable
BPYJVP2 交聯聚乙烯絕緣銅帶繞包屏蔽聚氯乙烯護套變頻器電纜
BPYJVP2 cross-linked polyethylene insulated copper tape wrapped and shielded polyvinyl chloride sheathed frequency converter cable
BPYJVP3 交聯聚乙烯絕緣聚氯乙烯護套鋁(鋁塑)復合膜繞包屏蔽變頻電力電纜
BPYJVP3 cross-linked polyethylene insulated polyvinyl chloride sheathed aluminum (aluminum-plastic) composite film wrapped shielding variable frequency power cable
BPYJVP2-22銅芯交聯聚乙烯絕緣聚氯乙烯護套銅帶繞包屏蔽鎧帶鎧裝變頻器用電力電纜
BPYJVP2-22 Copper core cross-linked polyethylene insulated polyvinyl chloride sheathed copper tape wrapped, shielded, armored frequency converter power cable
ZR-BPYJVP交聯聚乙烯絕緣聚氯乙烯護套銅絲編織屏蔽阻燃變頻器電纜
ZR-BPYJVP cross-linked polyethylene insulated polyvinyl chloride sheathed copper wire braided shielded flame-retardant frequency converter cable
ZR-BPYJVP2 交聯聚乙烯絕緣聚氯乙烯護套銅帶繞包屏蔽阻燃變頻器電纜
ZR-BPYJVP2 cross-linked polyethylene insulated polyvinyl chloride sheathed copper tape wrapped and shielded flame-retardant frequency converter cable
ZR-BPYJVP3 交聯聚乙烯絕緣聚氯乙烯護套鋁(鋁塑)帶屏蔽阻燃變頻器電纜
ZR-BPYJVP3 cross-linked polyethylene insulated polyvinyl chloride sheathed aluminum (aluminum-plastic) tape shielded flame-retardant frequency converter cable
