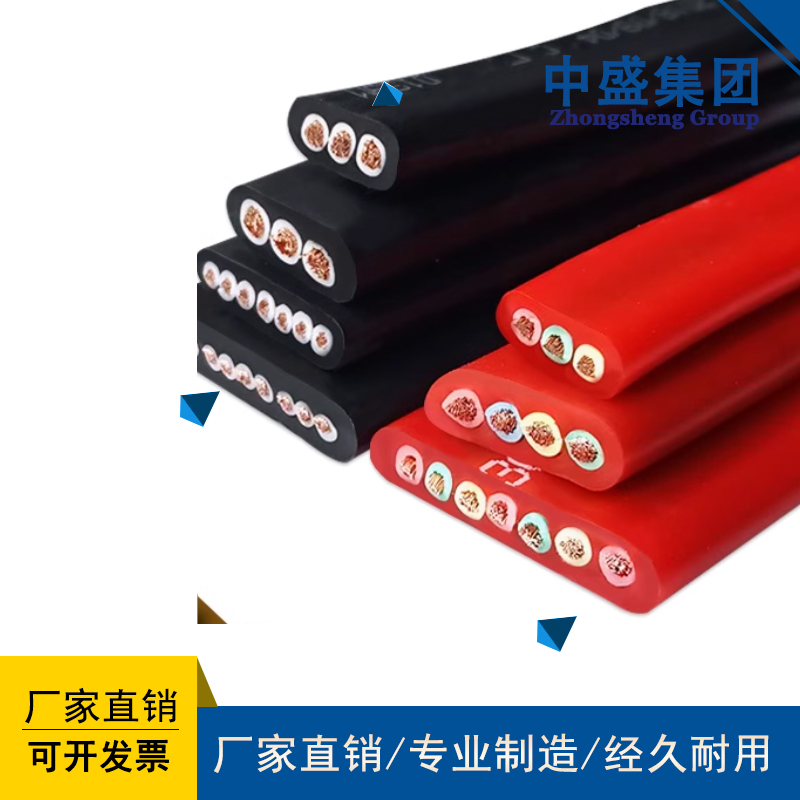

產品名稱：Flat cables for steel clad vehicles YEFRBG
瀏覽：
添加時間：2024-06-13 15:13:55
推薦度：

介紹：

一、產品特點及用途

1、 Product features and uses

本產品主要適用于交流額定電壓0.6/1KV及以下、鋼廠、冶金等企業的鋼包車及類似場合使用。電纜具有較好的耐溫、防腐蝕、耐老化、柔軟、抗拖拽、防濺鋼水、壽命長等特點。可根據用戶及設備需要設計動力、控制、通訊為一體的多芯、多組多用途的組合電纜。

This product is mainly suitable for use in steel cars and similar situations in steel mills, metallurgical enterprises, etc. with AC rated voltage of 0.6/1KV and below. Cables have good characteristics such as temperature resistance, corrosion resistance, aging resistance, softness, drag resistance, splash resistance of molten steel, and long service life. Multi core, multi-purpose combination cables that integrate power, control, and communication can be designed according to the needs of users and equipment.

二、使用特性

2、 Usage characteristics

1、額定工作電壓U0/U為0.6/1KV；

1. The rated working voltage U0/U is 0.6/1KV;

2、電纜導體長期允許的zui高工作溫度為90℃、180℃；

2. The long-term allowable high working temperatures for cable conductors are 90 ℃ and 180 ℃;

3、電纜短路時(zui長時間不超過5S)zui高工作溫度250℃；

3. When the cable is short circuited (for a long time not exceeding 5S), the high working temperature is 250 ℃;

4、電纜彎曲半徑zui小不低于電纜實際外徑的6倍。

4. The bending radius of the cable should not be less than 6 times the actual outer diameter of the cable.

三：基本型號及名稱

3： Basic model and name
