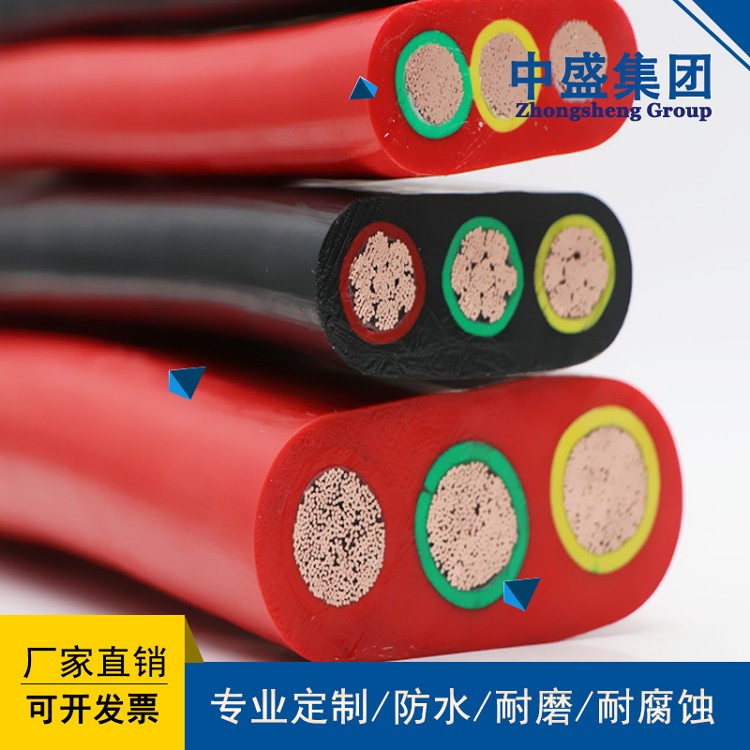

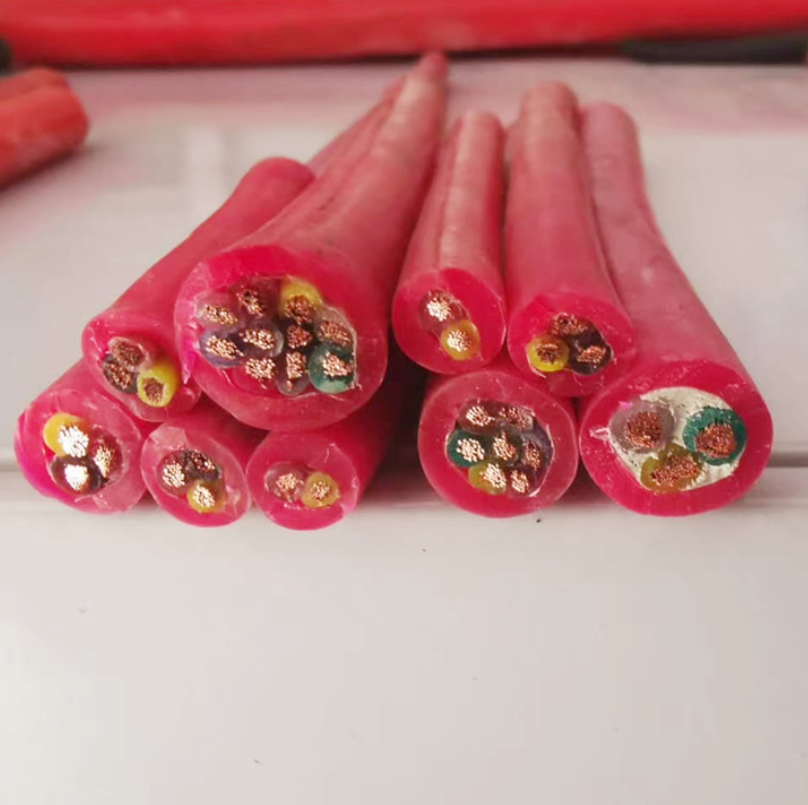

- 產品名稱：Silicone rubber cable KGGRP
- 瀏覽：
- 添加時間：2024-06-21 10:14:33
- 推薦度：
產品特點及用途
Product features and uses
本產品適用于交流額定電壓450/750V及以下移動或固定敷設用電器儀表連接線或信號傳輸，
This product is suitable for connecting wires or signal transmission of mobile or fixed electrical instruments with rated AC voltage of 450/750V and below,
電纜具有較好的熱穩(wěn)定性，能在高溫、低溫、腐蝕性中保持良好的電性能和柔軟性，適合
Cables have good thermal stability and can maintain good electrical performance and flexibility in high, low, and corrosive environments, making them suitable for
冶金、電力、石化等行業(yè)具有移動耐溫等特殊要求場合使用。
Used in industries such as metallurgy, power, and petrochemicals with special requirements for mobile temperature resistance.
二：使用特性
2： Usage characteristics
1． 交流額定電壓：U0/U 450/750KV
1. AC rated voltage: U0/U 450/750KV
zui高工作溫度：180℃
Zui high working temperature: 180 ℃
2． zui低環(huán)境溫度：硅橡膠護套：固定敷設-60℃，非固定敷設-20℃
2. Low ambient temperature: silicone rubber sheath: fixed laying -60 ℃, non fixed laying -20 ℃
3． 電纜安裝敷設溫度應不低于-20℃。
3. The installation and laying temperature of cables should not be lower than -20 ℃.
4． 電纜允許彎曲半徑：非鎧裝電纜zui小為電纜外徑的6倍
4. Permissible bending radius of cables: The minimum radius of non armored cables is 6 times the outer diameter of the cable
三：基本型號及名稱
3： Basic model and name
KGG
KGG
硅橡膠絕緣和護套控制電纜
Silicone rubber insulated and sheathed control cables
KGGR
KGGR
硅橡膠絕緣和護套控制軟電纜
Silicone rubber insulated and sheathed control flexible cables
KGGP
KGGP
硅橡膠絕緣和護套銅絲編織屏蔽控制電纜
Silicone rubber insulated and sheathed copper wire braided shielded control cable
KGGRP
KGGRP
硅橡膠絕緣和護套銅絲編織屏蔽控制軟電纜
Silicone rubber insulated and sheathed copper wire braided shielded control flexible cable
KGGRP1
KGGRP1
硅橡膠絕緣和護套鍍錫編織屏蔽控制軟電纜
Silicone rubber insulated and sheathed tin plated braided shielded control flexible cables
備注：1 如需阻燃型硅橡膠電纜，型號前加ZR；
Note: If flame retardant silicone rubber cable is required, add ZR before the model;
四：代號名稱和含義
4： Code name and meaning
項目
project
代號
Code
說明
explain
阻燃特性
Flame retardant properties
ZR
ZR
阻燃硅橡膠護套
Flame retardant silicone rubber sheath
系列代號
Series code
K
K
控制電纜
Control cable
絕緣材料
Insulation materials
G
G
硅橡膠
silicon rubber
護套材料
Jacket material
G
G
硅橡膠
silicon rubber
YVF
YVF
丁晴聚氯乙烯
Dingqing polyvinyl chloride
屏蔽材料
Shielding materials
P
P
銅絲編織屏蔽
Copper wire braided shielding
P1
P1
鍍錫銅絲屏蔽
Tin plated copper wire shielding
導體結構
Conductor structure
A
A
單股導體
Single stranded conductor
B
B
7股絞合導體
7-strand stranded conductor
R
R
多股絞合導體
Stranded conductor
