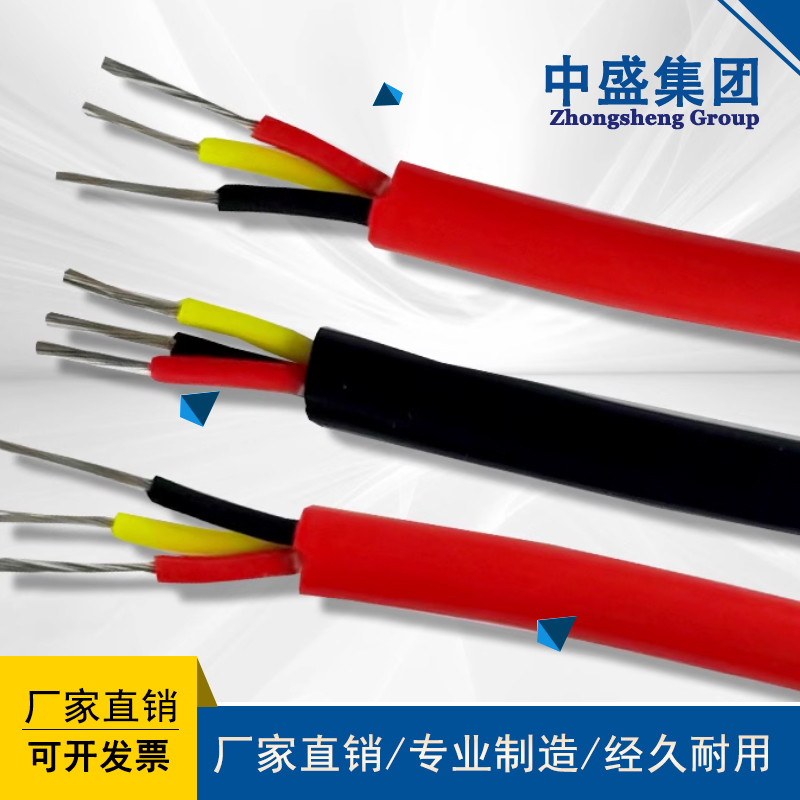

- 產品名稱：Silicone rubber cable JGGRP
- 瀏覽：
- 添加時間：2024-07-11 16:56:08
- 推薦度：
一、硅橡膠電纜,本產品適用于額定電壓0.6/1KV及以下的高溫范圍和惡劣環境內，作電氣設備電能傳輸線，和控制及監控回路中。硅橡膠電纜,它具有優良的耐高溫，阻燃，耐輻射，耐老化，耐臭氧，防水等特性，并具有很好的耐寒性，耐候性和優良的柔軟性。硅橡膠電纜,適用于鋼鐵，冶煉，電廠，焦化廠，冶金機械，石油，化工，起重，運輸，港口，礦山等高低溫工業中。
1、 Silicone rubber cable, this product is suitable for use in high temperature range and harsh environment with rated voltage of 0.6/1KV and below, as an electrical equipment power transmission line, and in control and monitoring circuits. Silicone rubber cable has excellent characteristics such as high temperature resistance, flame retardancy, radiation resistance, aging resistance, ozone resistance, waterproofing, etc. It also has good cold resistance, weather resistance, and excellent flexibility. Silicone rubber cables are suitable for high and low temperature industries such as steel, smelting, power plants, coking plants, metallurgical machinery, petroleum, chemical, lifting, transportation, ports, mines, etc.
二、硅橡膠電纜生產執行標準：Q/TK08.4-2010 GB/T19666-2005及相應的******標準
2、 Production execution standard for silicone rubber cables: Q/TK08.4-2010 GB/T19666-2005 and corresponding national standards
三、 硅橡膠電纜使用特性
3、 Characteristics of using silicone rubber cables
1 硅橡膠電纜交流額定電壓：∪0/∪：（電力電纜系列：600/1000V，控制電纜系列：450/750V）
1. Silicone rubber cable AC rated voltage: ∪ 0/∪: (Power cable series: 600/1000V, control cable series: 450/750V)
2 硅橡膠電纜允許工作溫度范圍：硅橡膠絕緣或護套-60℃―+180℃;
2. Allowable working temperature range for silicone rubber cables: -60 ℃ -+180 ℃ for silicone rubber insulation or sheath;
：氟塑料絕緣-60℃— +200℃;
Fluoroplastic insulation -60 ℃ -+200 ℃;
：丁晴護套-40℃-＋70℃'
Ding Qing protective sheath -40 ℃ -+70 ℃
3 硅橡膠電纜短路時（zui長持續間不超過5S）硅橡膠電纜,導體的zui高溫度不超過250℃。
When a short circuit occurs in a silicone rubber cable (with a maximum duration of 5 seconds), the maximum temperature of the conductor in the silicone rubber cable should not exceed 250 ℃.
4 硅橡膠電纜,敷設溫度應不低于-20℃。
4. Silicone rubber cables should be laid at a temperature not lower than -20 ℃.
5 硅橡膠電纜,的彎曲半徑如下：?jiǎn)涡倦娎|彎曲半徑不小于電纜外徑的6倍，有銅帶屏蔽及鎧裝結構電纜其彎曲
The bending radius of 5 silicone rubber cables is as follows: the bending radius of a single core cable is not less than 6 times the outer diameter of the cable, and the bending radius of cables with copper tape shielding and armor structure is as follows
半徑不小于電纜外徑的10倍；
The radius shall not be less than 10 times the outer diameter of the cable;
6 硅橡膠電纜,有優良的耐臭氧老化，耐老化，紫外光老化和大氣老化性能。
6 silicone rubber cables have excellent resistance to ozone aging, aging, UV aging, and atmospheric aging.
7 硅橡膠電纜,電絕緣性能好，耐電暈和抗電弧性很*；
7. Silicone rubber cable with good electrical insulation performance, excellent resistance to corona and arc
四、 硅橡膠電纜型號和名稱
4、 Silicone rubber cable model and name
型號 名稱
Model name
KGG 銅芯硅橡膠絕緣及護套硅橡膠控制電纜
KGG copper core silicone rubber insulated and sheathed silicone rubber control cable
KGGRP 硅橡膠絕緣及護套編織屏蔽硅橡膠控制軟電纜
KGGRP silicone rubber insulated and sheathed braided shielded silicone rubber control flexible cable
YGC 硅橡膠絕緣硅及護套硅橡膠電纜
YGC silicone rubber insulated and sheathed silicone rubber cable
YGZ 硅橡膠絕緣及護套硅橡膠電纜
YGZ silicone rubber insulated and sheathed silicone rubber cable
RGG 硅橡膠絕緣及護套硅橡膠軟電纜
RGG silicone rubber insulated and sheathed silicone rubber flexible cable
ZR-YGCB 硅橡膠絕緣及護套阻燃扁平硅橡膠電纜
ZR-YGCB silicone rubber insulated and sheathed flame-retardant flat silicone rubber cable
ZR-YF46GRB 氟塑料絕緣硅橡膠護套阻燃扁平軟電纜
ZR-YF46GRB fluorine plastic insulated silicone rubber sheathed flame-retardant flat flexible cable
AGR 硅橡膠絕緣軟安裝線
AGR silicone rubber insulated flexible installation line
JGG 硅橡膠絕緣及護套電機引接電纜
JGG silicone rubber insulated and sheathed motor lead cable
HGG 硅橡膠絕緣及護套硅橡膠電纜
HGG silicone rubber insulated and sheathed silicone rubber cable
KFGR 氟塑料絕緣硅橡膠護套控制軟電纜
KFGR fluoroplastic insulated silicone rubber sheathed control flexible cable
KFGP 氟塑料絕緣硅橡膠護套編織屏蔽硅橡膠電纜
KFGP Fluoroplastic Insulated Silicone Rubber Sheath Braided Shielded Silicone Rubber Cable
KGVFR 硅橡膠絕緣丁硅護套控制軟電纜
KGVFR silicone rubber insulated rubber sheathed control flexible cable
FG 氟塑料絕緣硅橡膠護套耐高溫硅橡膠電纜
FG Fluoroplastic Insulated Silicone Rubber Sheath High Temperature Resistant Silicone Rubber Cable
FG22 氟塑料絕緣硅橡膠護套鋼帶鎧裝耐高溫硅橡膠電纜
FG22 Fluoroplastic Insulated Silicone Rubber Sheath Steel Strip Armored High Temperature Resistant Silicone Rubber Cable
NH-YGC 硅橡膠絕緣及護套耐火硅橡膠電纜
NH-YGC silicone rubber insulated and sheathed fire-resistant silicone rubber cable
ZRA-KGG 硅橡膠絕緣及護套*阻燃控制電纜
ZRA-KGG silicone rubber insulated and sheathed flame retardant control cable
ZRC-YGC 硅橡膠絕緣及護套C級組燃硅橡膠電纜
ZRC-YGC silicone rubber insulated and sheathed C-class group combustible silicone rubber cable
NH-HGGRP 硅橡膠絕緣及護套編織屏蔽耐火軟硅橡膠電纜
NH-HGGRP silicone rubber insulated and sheathed braided shielded fire-resistant soft silicone rubber cable
DJGPG 硅橡膠絕緣編織屏蔽硅橡膠護套計算機電纜
DJGPG silicone rubber insulated braided shielded silicone rubber sheathed computer cable
DJFPGP 氟塑料絕緣硅橡膠護套編織分屏及總屏計算機電纜
DJFPGP fluoroplastic insulated silicone rubber sheathed braided split screen and total screen computer cable
