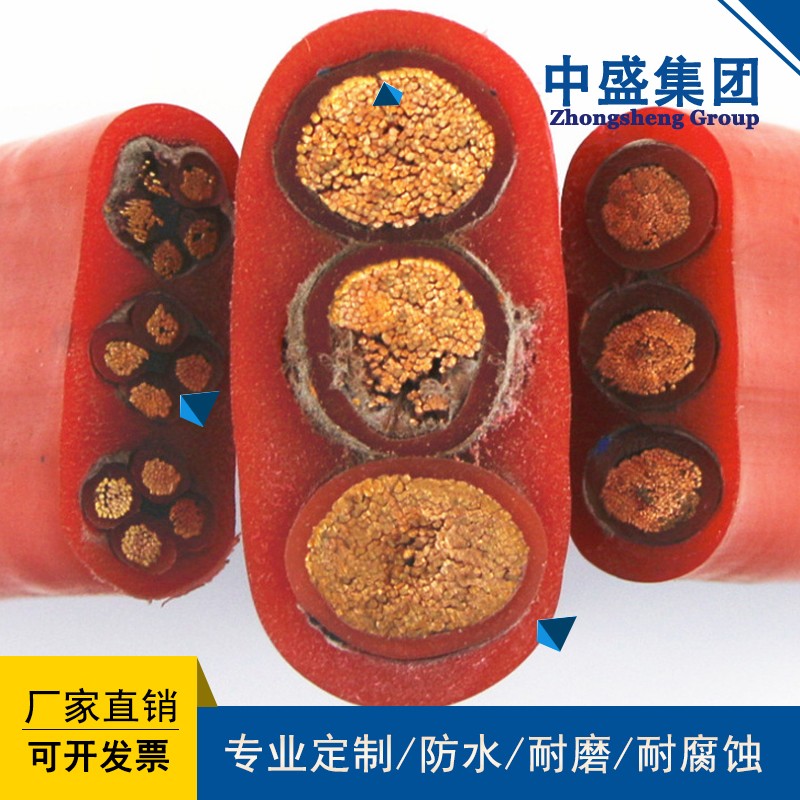

- 產品名稱：Silicone rubber flat cableYGCB、YGCBP
- 瀏覽：
- 添加時間：2024-07-16 10:19:51
- 推薦度：
一：硅橡膠扁電纜產品特點及用途
1： Characteristics and Applications of Silicone Rubber Flat Cable Products
硅橡膠扁電纜采用硅橡膠作絕緣或護套材料，由于硅橡膠本身具有耐高溫、耐寒、柔軟、耐磨、防腐等特性，因此該電纜高溫環境下電氣性能穩定，抗老化性能好，使用壽命長，適合于交流1KV及以下具有抗拉、耐熱、防腐等特殊要求的行車、臺車、傳輸機械等移動設備和電器用動力傳輸線及控制、照明、通訊線路，本產品已廣泛應用于冶金、電力、化工、船舶、港口等行業。
The silicone rubber flat cable uses silicone rubber as the insulation or sheath material. Because silicone rubber itself has the characteristics of high temperature resistance, cold resistance, softness, abrasion resistance, corrosion prevention, etc., the cable has stable electrical performance, good anti-aging performance, and long service life under high temperature environment. It is suitable for mobile equipment such as cranes, trolleys, transmission machinery, and electrical power transmission lines and control, lighting, communication lines with special requirements such as tensile strength, heat resistance, and corrosion resistance at 1KV and below. This product has been widely used in metallurgy, power, chemicals, ships, ports, and other industries.
分相屏蔽硅橡膠護套扁平電纜適用于作變頻器供電電纜。
The phase shielded silicone rubber sheathed flat cable is suitable for use as a power supply cable for frequency converters.
二：硅橡膠扁電纜產品執行標準：企業標準
2： Implementation standard for silicone rubber flat cable products: Enterprise standard
三：硅橡膠扁電纜使用特性
3： Characteristics of using silicone rubber flat cable
1．交流額定電壓：U0/U 0.6/1KV
1. Rated AC voltage: U0/U 0.6/1KV
***高工作溫度：180℃
Maximum operating temperature: 180 ℃
***低環境溫度：固定敷設-60℃
Minimum ambient temperature: Fixed installation -60 ℃
2．電纜安裝敷設溫度應不低于-25℃。
2. The temperature for cable installation and laying should not be lower than -25 ℃.
四：硅橡膠扁電纜基本型號及名稱
4： Basic models and names of silicone rubber flat cables
型號產品名稱
Model Product Name
YGGB硅橡膠絕緣和護套鍍錫銅絲移動用扁平軟電纜
YGGB silicone rubber insulated and sheathed tinned copper wire mobile flat flexible cable
YGCB-VFR DQ絕緣硅橡膠護套移動用扁平軟電纜
YGCB-VFR DQ insulated silicone rubber sheathed mobile flat flexible cable
YGCB-HF46R F46絕緣硅橡膠護套移動用扁平軟電纜
YGCB-HF46R F46 Insulated Silicone Rubber Sheath Flat Flexible Cable for Mobile Use
YGCBP硅橡膠絕緣和護套鍍錫銅絲編織分相屏蔽移動用扁平軟電纜
YGCBP silicone rubber insulated and sheathed tin plated copper wire braided phase shielded mobile flat flexible cable
YGCB-VFRP丁晴絕緣硅橡膠護套鍍錫銅絲編織分相屏蔽移動用扁平軟電纜
YGCB-VFRP Flat Flexible Cable for Mobile Use with Nitrile Insulation, Silicone Rubber Sheath, Tin Plated Copper Wire Braided Phase Separation Shielding
YGCB-HF46RP F46絕緣硅橡膠護套鍍錫銅絲編織分相屏蔽移動用扁平軟電纜
YGCB-HF46RP F46 Insulated Silicone Rubber Sheath Tin Plated Copper Wire Braided Phase Shielded Mobile Flat Flexible Cable
備注：導體線芯中銅絲可以采用鍍錫。
Note: The copper wire in the conductor core can be tinned.
五：硅橡膠扁電纜代號名稱和含義表2
5： Table 2: Code names and meanings of silicone rubber flat cables
代號代號含義
Meaning of code names
Y移動用系列
Y Mobile Series
G硅橡膠絕緣或護套
G Silicone rubber insulation or sheath
VF丁晴絕緣或護套
VF insulation or sheath
B扁型
B flat type
P銅絲（鍍錫銅絲）屏蔽
P copper wire (tin plated copper wire) shielding
F46聚全氟乙丙烯
F46 perfluoroethylene propylene
六：硅橡膠扁電纜主要技術指標
6： Main technical indicators of silicone rubber flat cable
1．成品電纜導體（R類）直流電阻（符合GB3956規定）參照附錄A表2。
1. The DC resistance of the finished cable conductor (Class R) (in accordance with GB3956 regulations) shall refer to Table 2 in Appendix A.
2．20℃時絕緣電阻不小于100MΩ/KM。
The insulation resistance at 2.20 ℃ shall not be less than 100M Ω/KM.
3．成品電纜經受交流50HZ3.5KV/5min電壓試驗不擊穿。
3. The finished cable shall withstand an AC 50HZ3.5KV/5min voltage test without breakdown.
七：硅橡膠扁電纜基本電纜規格及結構參數
7： Basic specifications and structural parameters of silicone rubber flat cables
