產品名稱：Submarine motor cableJHS 、JHSB
瀏覽：
添加時間：2024-07-16 15:47:09
推薦度：

介紹：

產品簡介

Product Introduction

潛水電機電纜，潛水泵電纜防水電纜，JHS型防水橡套電纜供交流電壓500V及以下的潛水電機上傳輸電能用。在長期浸水及較大的水壓下，具有良好的電氣絕緣性能。防水橡套電纜彎曲性能良好，能承受經常的移動. 電纜應用于水下面（30—70米）潛水泵長期通電工作，具有防水防腐功能。

Submersible motor cables, waterproof cables for submersible pumps, and JHS type waterproof rubber sheathed cables are used for transmitting electrical energy on submersible motors with AC voltage of 500V and below. Under long-term immersion and high water pressure, it has good electrical insulation performance. Waterproof rubber sheathed cables have good bending performance and can withstand frequent movement The cable is used for long-term operation of submersible pumps underwater (30-70 meters) and has waterproof and anti-corrosion functions.

產品詳細信息

Product Details

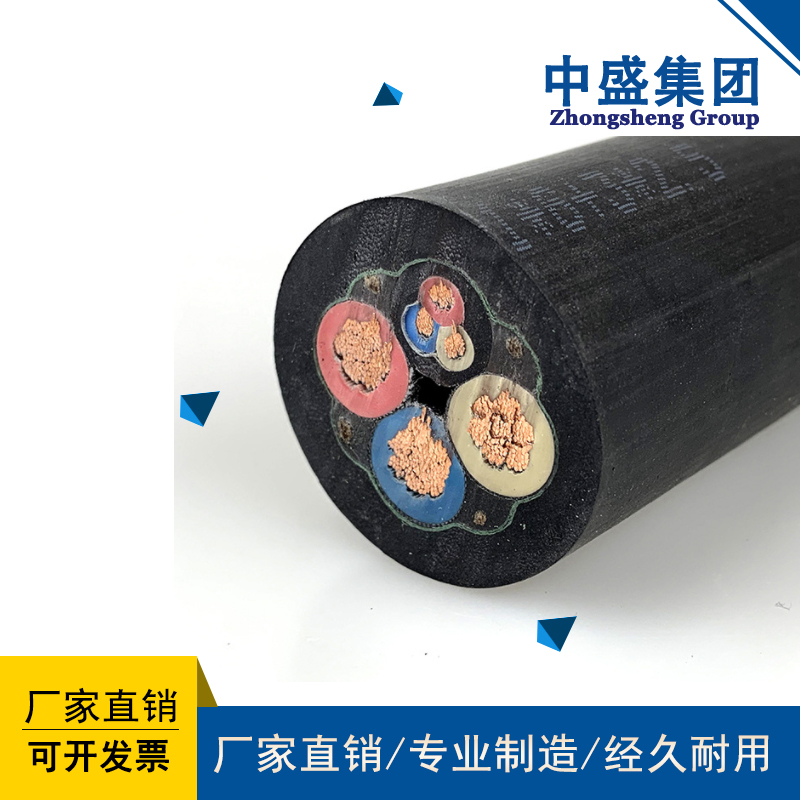

潛水電機電纜

Submarine motor cable

一、概述：

1、 Overview:

潛水電機電纜，潛水泵電纜防水電纜，JHS 300/500V及以下潛水電機用防水橡套電纜 4、6、10 16、25、35 50、70、95 1、3 4 TL/Q 13-91 連接交流電壓300/500V及以下前水電機用，防水橡套電纜一端在水中，長期允許工作溫度不超過65℃

Submarine motor cable, submersible pump cable waterproof cable, JHS 300/500V and below submersible motor waterproof rubber sleeve cable 4, 6, 10 16, 25, 35 50, 70, 95 1, 3 4 TL/Q 13-91 for connecting AC voltage 300/500V and below front water motor, waterproof rubber sleeve cable with one end in water, long-term allowable working temperature not exceeding 65 ℃

潛水電機電纜，潛水泵電纜防水電纜，JHSB 潛水電機用扁防水橡套電纜 16、25 35、50 3 TL/J 13-91 適用于排水前水電泵輸送電力用，長期允許工作溫度不超過85℃ JHS型防水橡套電纜供交流電壓500V及以下的潛水電機上傳輸電能用。在長期浸水及較大的水壓下，具有良好的電氣絕緣性能。防水橡套電纜彎曲性能良好，能承受經常的移動.

Submersible motor cables, submersible pump cables, waterproof cables, JHSB submersible motor flat waterproof rubber sheathed cables 16, 25, 35, 50 3 TL/J 13-91 are suitable for transmitting electricity to water and electricity pumps before drainage. The long-term allowable working temperature does not exceed 85 ℃. JHS type waterproof rubber sheathed cables are used for transmitting electrical energy to submersible motors with AC voltage of 500V and below. Under long-term immersion and high water pressure, it has good electrical insulation performance. Waterproof rubber sheathed cables have good bending performance and can withstand frequent movement

二、規格型號：Specification and model:

型號	名稱	截面mm2	芯數	執行標準	主要用途
JHS	300/500V及以下潛水電機用防水橡套電纜Waterproof rubber sheathed cables for submersible motors of 300/500V and below	4、6、10 16、25、35 50、70、95	1、3 4	TL/Q 13-91	連接交流電壓300/500V及以下前水電機用，防水橡套電纜一端在水中，長期允許工作溫度不超過65℃Used for connecting front water motors with AC voltage of 300/500V and below. One end of the waterproof rubber sheathed cable is in water, and the long-term allowable working temperature does not exceed 65 ℃

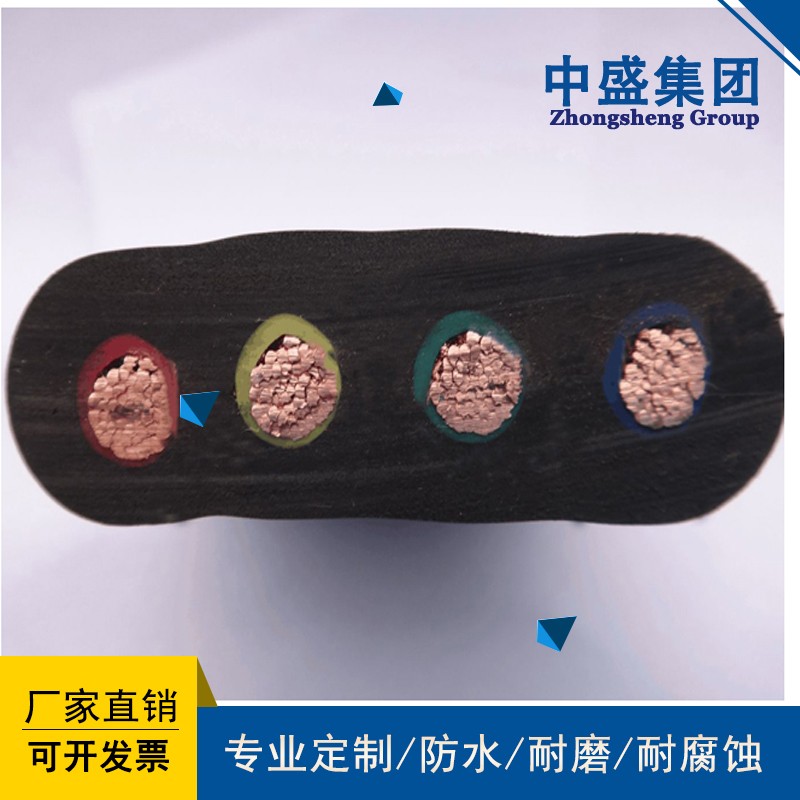

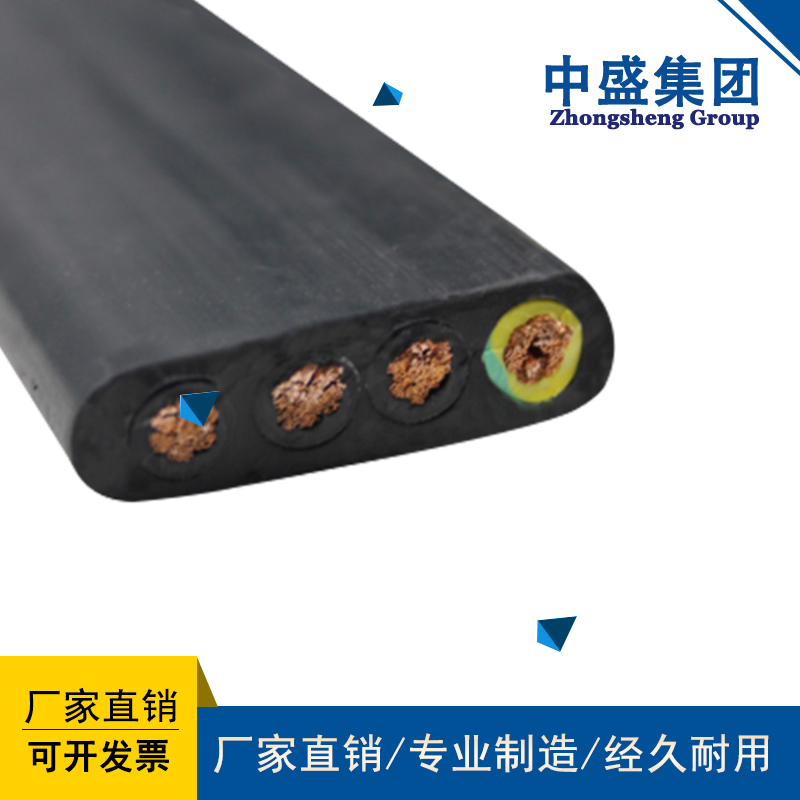

JHSB	潛水電機用扁防水橡套電纜Flat waterproof rubber sheathed cable for submersible motors	16、25 35、50	3	TL/J 13-91	適用于排水前水電泵輸送電力用，長期允許工作溫度不超過85℃Suitable for transmitting electricity through water and electricity pumps before drainage, with a long-term allowable working temperature not exceeding 85 ℃
