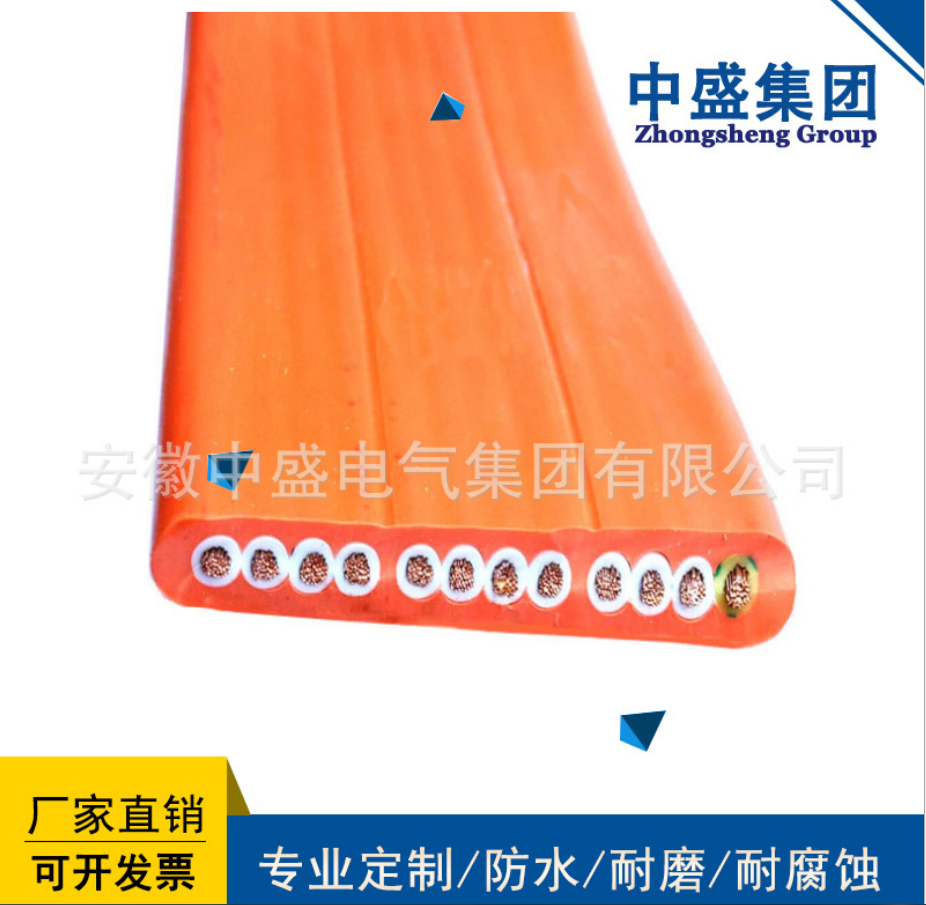

- 產品名稱：Nitrile flat cable KYVFB
- 瀏覽：
- 添加時間：2024-07-16 16:14:26
- 推薦度：
一：產品特點及用途
1： Product Features and Applications
本產品具有耐寒、柔軟、耐磨、防油等特性，適用于交流額定電壓0.6/1KV及以下具有耐寒、防油等特殊要求的移動電器用連接電纜，目前本產品已廣泛應用于冶金、電力、船舶、汽車制造等行業。
This product has the characteristics of cold resistance, softness, wear resistance, and oil resistance, and is suitable for connecting cables for mobile electrical appliances with special requirements for cold resistance and oil resistance for AC rated voltage of 0.6/1KV and below. Currently, this product has been widely used in industries such as metallurgy, power, shipbuilding, and automobile manufacturing.
二：產品執行標準
2： Product execution standards
Q/HL009-2004.
Q/HL009-2004.
阻燃性能試驗執行GB12666-90規定
Flame retardant performance test shall comply with GB12666-90 regulations
三：使用特性
3： Usage characteristics
1． 交流額定電壓：U0/U 0.6/1KV
1. Rated AC voltage: U0/U 0.6/1KV
高工作溫度： 105℃
High operating temperature: 105 ℃
低環境溫度：固定敷設-40℃
Low ambient temperature: Fixed installation -40 ℃
2． 電纜安裝敷設溫度應不低于-25℃。
2. The temperature for cable installation and laying should not be lower than -25 ℃.
3． 電纜允許彎曲半徑：電纜小為電纜外徑的12倍
3. Allowable bending radius for cables: The minimum bending radius for cables is 12 times the outer diameter of the cable
四：基本型號及名稱
4： Basic model and name
型號
model
產品名稱
Product Name
YVFR
YVFR
絕緣和護套電力軟電纜
Insulated and sheathed power flexible cable
YVFRP
YVFRP
絕緣和護套銅編織屏蔽電力軟電纜
Insulated and sheathed copper braided shielded power flexible cable
ZR-YVFR
ZR-YVFR
阻燃絕緣和護套電力軟電纜
Flame retardant insulated and sheathed power flexible cable
ZR-YVFRP
ZR-YVFRP
阻燃絕緣和護套銅編織屏蔽電力軟電纜
Flame retardant insulated and sheathed copper braided shielded power flexible cable
YVFPR
YVFPR
絕緣和護套屏蔽軟電纜
Insulated and sheathed shielded flexible cable
YVFRP2
YVFRP2
絕緣和護套銅箔屏蔽電力軟電纜
Insulated and sheathed copper foil shielded power flexible cable
YVFRB
YVFRB
絕緣和護套電力軟扁電纜
Insulated and sheathed power flexible flat cable
YVFRPB
YVFRPB
絕緣和護套銅編織屏蔽電力軟扁電纜
Insulated and sheathed copper braided shielded power flexible flat cable
YVFB
YVFB
絕緣和護套移動扁電纜
Insulated and sheathed mobile flat cable
YVFPB
YVFPB
絕緣和護套銅編織屏蔽移動扁電纜
Insulated and sheathed copper braided shielded mobile flat cable
YVFP2B
YVFP2B
絕緣和護套銅箔屏蔽移動扁電纜
Insulated and sheathed copper foil shielded mobile flat cable
ZR-YVFRPB
ZR-YVFRPB
阻燃絕緣和護套銅編織屏蔽移動扁電纜電纜
Flame retardant insulated and sheathed copper braided shielded mobile flat cable
NH-YVFR
NH-YVFR
耐火絕緣和護套電力軟電纜
Fire resistant insulated and sheathed power flexible cable
NH-YVFRP
NH-YVFRP
耐火絕緣和護套銅編織屏蔽電力軟電纜
Fire resistant insulated and sheathed copper braided shielded power flexible cable
KYVFR
KYVFR
絕緣和護套控制軟電纜
Insulated and sheathed control flexible cable
KYVFRP
KYVFRP
絕緣和護套銅編織屏蔽控制軟電纜
Insulated and sheathed copper braided shielded control flexible cable
ZR-KYVFR
ZR-KYVFR
阻燃絕緣和護套控制軟電纜
Flame retardant insulated and sheathed control flexible cable
ZR-KYVFRP
ZR-KYVFRP
阻燃絕緣和護套銅編織屏蔽控制軟電纜
Flame retardant insulated and sheathed copper braided shielded control flexible cable
KYVFPR
KYVFPR
絕緣和護套屏蔽控制軟電纜
Insulated and sheathed shielded control flexible cable
KYVFRP2
KYVFRP2
絕緣和護套銅箔屏蔽控制軟電纜
Insulated and sheathed copper foil shielded control flexible cable
YVFP
YVFP
絕緣和護套屏蔽電力電纜
Insulated and sheathed shielded power cables
KYVFP
KYVFP
絕緣和護套銅編織屏蔽控制電纜
Insulated and sheathed copper braided shielded control cable
ZR-KYVFP
ZR-KYVFP
阻燃絕緣和護套屏蔽控制電纜
Flame retardant insulated and sheathed shielded control cable
ZR-KVFP2
ZR-KVFP2
阻燃絕緣和護套銅箔屏蔽控制電纜
Flame retardant insulated and sheathed copper foil shielded control cable
YVFP2
YVFP2
絕緣和護套銅箔屏蔽電力電纜
Insulated and sheathed copper foil shielded power cables
KYVFB
KYVFB
絕緣和護套控制扁電纜
Insulated and sheathed control flat cable
ZR-YFFB
ZR-YFFB
阻燃復合物絕緣和護套移動扁平軟電纜
Flame retardant composite insulated and sheathed mobile flat flexible cable
ZR-YFFPB
ZR-YFFPB
阻燃復合物絕緣和護套銅絲屏蔽移動扁平軟電纜
Flame retardant composite insulated and sheathed copper wire shielded mobile flat flexible cable
YFFB
YFFB
復合物絕緣和護套移動扁平軟電纜
Composite insulated and sheathed mobile flat flexible cable
YFFBP
YFFBP
復合物絕緣和護套銅絲屏蔽移動扁平軟電纜
Composite insulated and sheathed copper wire shielded mobile flat flexible cable
YFFRB
YFFRB
復合物絕緣和護套移動扁平軟電纜
Composite insulated and sheathed mobile flat flexible cable
YFFRBP
YFFRBP
復合物絕緣和護套銅絲屏蔽移動扁平軟電纜
Composite insulated and sheathed copper wire shielded mobile flat flexible cable
YFF
YFF
復合物絕緣和護套電纜
Composite insulated and sheathed cables
YFFP
YFFP
復合物絕緣和護套銅絲屏蔽電纜
Composite insulated and sheathed copper wire shielded cable
五：代號名稱和含義
5： Code name and meaning
表2
Table 2
代號
Code name
代號含義
Meaning of code
YVF
YVF
電纜系列
Cable series
P
P
銅編織屏蔽
Copper braided shielding
R
R
多股絞合導體
Multi stranded conductor
B
B
扁電纜
Flat cable
六：主要技術指標
6： Main technical indicators
1．成品電纜導體(R類)直流電阻(符合GB3956規定)參照附錄A表2。
1. The DC resistance of the finished cable conductor (Class R) (in accordance with GB3956 regulations) shall refer to Table 2 in Appendix A.
2．20℃時絕緣電阻不小于50MΩ/KM。
The insulation resistance at 2.20 ℃ shall not be less than 50M Ω/KM.
3．成品電纜經受交流50HZ3.5KV/5min電壓試驗不擊穿。
3. The finished cable shall withstand an AC 50HZ3.5KV/5min voltage test without breakdown.
七：基本電纜規格及結構參數
7： Basic cable specifications and structural parameters
線芯*標稱截面(mm2) Core * nominal cross-section (mm2) | 導體結構 (根數*直徑) (B/R) mm Conductor structure (Number of roots * diameter) (B/R) mm | 電纜大外徑 Cable outer diameter (mm) | 參考重量(kg/km) Reference weight (kg/km) | ||
YVFR | YVFRP | YVFR | YVFRP | ||
1*2.5 | 51*0.25 | 4.0 | - | 72 | - |
1*4 | 82*0.25 | 6.0 | - | 95 | - |
1*6 | 123*0.25 | 7.0 | - | 130 | - |
1*10 | 204*0.25 | 9.5 | - | 190 | - |
1*16 | 323*0.25 | 11.0 | - | 255 | - |
1*25 | 513*0.25 | 12.0 | - | 365 | - |
1*35 | 722*0.25 | 13.5 | - | 475 | - |
1*50 | 1026*0.25 | 15.0 | - | 670 | - |
1*70 | 1406*0.25 | 17.0 | - | 830 | - |
1*95 | 486*0.50 | 19.0 | - | 1200 | - |
1*120 | 608*0.50 | 21.0 | - | 1360 | - |
1*150 | 760*0.50 | 23.0 | - | 1654 | - |
1*185 | 945*0.50 | 26.0 | - | 2050 | - |
2*2.5 | 51*0.25 | 10.5 | 11.5 | 159 | 205 |
2*4 | 82*0.25 | 12.5 | 13.5 | 230 | 290 |
2*6 | 123*0.25 | 14.0 | 15.2 | 276 | 336 |
2*10 | 204*0.25 | 18.0 | 19.2 | 413 | 475 |
2*16 | 323*0.25 | 22.0 | 23.5 | 567 | 670 |
2*25 | 513*0.25 | 24.5 | 25.5 | 833 | 933 |
2*35 | 722*0.25 | 29.0 | 30.2 | 1088 | 1288 |
2*50 | 1026*0.25 | 33.0 | 35.0 | 1297 | 1590 |
2*70 | 1406*0.25 | 38.0 | 39.0 | 1675 | 1900 |
2*95 | 486*0.50 | 41.0 | 43.0 | 2205 | 2500 |
2*120 | 608*0.50 | 48.0 | 50.0 | 2660 | 3000 |
2*150 | 760*0.50 | 52.0 | 54.0 | 3350 | 3750 |
2*185 | 945*0.50 | 57.0 | 59.0 | 4400 | 4820 |
3*2.5 | 51*0.25 | 12.0 | 13.0 | 210 | 270 |
3*4 | 82*0.25 | 13.0 | 14.0 | 295 | 365 |
3*6 | 123*0.25 | 14.8 | 15.8 | 375 | 455 |
3*10 | 204*0.25 | 19.0 | 20.0 | 559 | 639 |
3*16 | 323*0.25 | 22.0 | 23.0 | 770 | 870 |
3*25 | 513*0.25 | 26.0 | 27.0 | 1239 | 1349 |
3*35 | 722*0.25 | 33.0 | 34.1 | 1520 | 1640 |
3*50 | 1026*0.25 | 36.5 | 38.5 | 1970 | 2100 |
3*70 | 1406*0.25 | 40.5 | 42.5 | 2580 | 2790 |
3*95 | 486*0.50 | 48.5 | 50.5 | 3280 | 3500 |
3*120 | 608*0.50 | 53.0 | 55.0 | 4060 | 4380 |
3*150 | 760*0.50 | 58.0 | 60.0 | 5197 | 5597 |
3*185 | 945*0.50 | 63.0 | 65.0 | 6279 | 6700 |
3*4+1*2.5 | 82*0.25 | 14.5 | 15.6 | 300 | 370 |
3*6+1*4 | 123*0.25 | 16.0 | 17.2 | 400 | 490 |
3*10+1*6 | 204*0.25 | 21.0 | 23.0 | 590 | 690 |
3*16+1*10 | 323*0.25 | 25.0 | 26.0 | 850 | 950 |
3*25+1*16 | 513*0.25 | 30.5 | 32.5 | 1255 | 1410 |
3*35+1*16 | 722*0.25 | 33.5 | 35.6 | 1585 | 1790 |
3*50+1*25 | 1026*0.25 | 40.2 | 42.2 | 2066 | 2280 |
3*70+1*35 | 1406*0.25 | 47.2 | 49.5 | 2778 | 3080 |
3*95+1*50 | 486*0.50 | 50.0 | 52.2 | 2836 | 3126 |
3*120+1*70 | 608*0.50 | 53.0 | 55.5 | 4857 | 5207 |
3*150+1*70 | 760*0.50 | 57.0 | 59.5 | 5700 | 6090 |
3*185+1*95 | 945*0.50 | 66.0 | 69.0 | 7114 | 7514 |
4*4 | 82*0.25 | 14.0 | 15.0 | 325 | 400 |
4*6<, /P> | 123*0.25 | 17.5 | 18.5 | 421 | 500 |
4*10 | 204*0.25 | 22.0 | 23.0 | 635 | 720 |
4*16 | 323*0.25 | 24.0 | 25.0 | 8981010 | |
4*25 | 513*0.25 | 31.0 | 32.0 | 1342 | 1490 |
4*35 | 722*0.25 | 34.0 | 35.0 | 1765 | 1900 |
