概述

summary

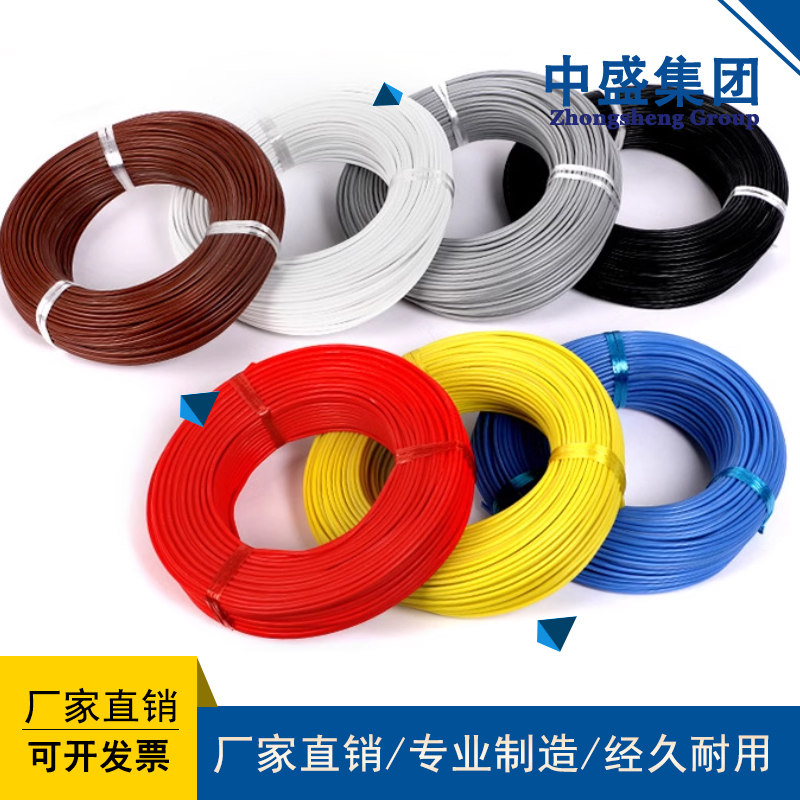

聚四氟乙烯薄膜繞包絕緣安裝線采用PTFE薄膜作為絕緣，按照企業標準生產。該類產品具有******的柔韌性，卓越的耐高溫性能 ，優良的化學性能 ，耐潮濕 、阻燃等優點。主要用于高溫條件下電子設備 、儀器儀表線路 、飛機布線及其它電器裝置的內部連接等。

The PTFE film wrapped insulation installation line uses PTFE film as insulation and is produced according to enterprise standards. This type of product has excellent flexibility, outstanding high temperature resistance, excellent chemical properties, moisture resistance, flame retardancy, and other advantages. Mainly used for internal connections of electronic equipment, instrument circuits, aircraft wiring, and other electrical devices under high temperature conditions.

產品主要性能

Main performance of the product

1. 額定電壓 ：交流 220V

1. Rated voltage: AC 220V

2.工作溫度 ：-65℃ ~ 200℃   -65℃ ~ 250℃（鍍銀導體）

2. Working temperature: -65 ℃~200 ℃ -65 ℃~250 ℃ (silver plated conductor)

3. 絕緣電阻 ：成品電線在室溫下應不小于100MΩ·km

3. Insulation resistance: The finished wire should not be less than 100M Ω· km at room temperature

4. 屏蔽編織密度應不小于80%,可以3米以上交貨。

4. The shielding weaving density should not be less than 80% and can be delivered over 3 meters.

1.4 常用規格結構數據表（可根據用戶特殊需要定做）

1.4 Common Specification Structure Data Sheet (can be customized according to user's special needs)





型號

model

芯數×截面

Number of cores x cross-section

mm2

mm2

導體結構

Conductor structure

股數/直徑

Number of shares/diameter

mm

mm

***大直流電阻

Maximum DC resistance

Ω/km  20℃

Ω/km  20℃

絕緣***薄厚度

The thinnest thickness of insulation

mm

mm

電線外徑

Outer diameter of wire

試驗電壓

Test voltage

kV

kV

型號	芯數×截面 mm2 Number of cores x cross-section mm2	導體結構 股數/直徑 mm Conductor structure Number of shares/diameter mm	***大直流電阻 Ω/km  20℃ Maximum DC resistance Ω/km  20℃	絕緣***薄厚度 mm The thinnest thickness of insulation mm	電線外徑Outer diameter of wire	試驗電壓 kV Test voltage kV
AFR-250 AF-1 AFR-200 AF	1×0.035	7/0.08	600	0.07	0.67	1.0
	2×0.035				1.50
	3×0.035				1.70
	1×0.05	10/0.08 7/0.10	370	0.07	0.72
	2×0.05				1.60
	3×0.05				1.80
	1×0.07	14/0.08 7/0.12	260	0.07	0.75
	2×0.07				1.70
	3×0.07				2.00
	1×0.10	21/0.08	180	0.07	0.85
	2×0.10				1.80
	3×0.10				2.10
	1×0.12	24/0.08 7/0.15	165	0.07	0.87
	2×0.12				1.80
	3×0.12				2.10
	1×0.15	30/0.08 19/0.10	125	0.07	0.90
	2×0.15				1.80
	3×0.15				2.20
	1×0.20	42/0.08 27/0.10 12/0.15 19/0.12	100	0.07	1.00
	2×0.20				2.00
	3×0.20				2.20
	1×0.30	62/0.08 45/0.10 18/0.15	70	0.07	1.15
	2×0.30				2.30
	3×0.30				2.60
	1× 0.35	75/0.08 45/0.10 19/0.16	60	0.07	1.20
	2× 0.35				2.40
	3× 0.35				2.60
	1× 0.40	85/0.08 54/0.10 24/0.15	55	0.07	1.30
	2× 0.40				2.70
	3× 0.40				3.00
	1× 0.50	105/0.08 66/0.10 29/0.15 19/0.18	42	0.07	1.40
	2× 0.50				2.80
	3× 0.50				3.10

型號	芯數×截面 mm2	導體結構 股數/直徑 mm	***大直流電阻 Ω/km  20℃	絕緣***薄厚度 mm	電線外徑	試驗電壓 kV
AFRP-250 AFP-1 AFRP-200 AFP	1×0.035	7/0.08	600	0.07	1.10	0.8
	2×0.035				1.90
	3×0.035				2.20
	1×0.05	10/0.08 7/0.10	370	0.07	1.20
	2×0.05				2.10
	3×0.05				2.30
	1×0.07	14/0.08 7/0.12	260	0.07	1.30
	2×0.07				2.20
	3×0.07				2.50
	1×0.10	21/0.08	180	0.07	1.40
	2×0.10				2.30
	3×0.10				2.80
	1×0.12	24/0.08 7/0.15	165	0.07	1.45
	2×0.12				2.40
	3×0.12				2.85
	1×0.15	30/0.08 19/0.10	125	0.07	1.55
	2×0.15				2.50
	3×0.15				2.90
	1×0.20	42/0.08 27/0.10 12/0.15 19/0.12	100	0.07	1.75
	2×0.20				3.10
	3×0.20				3.25
	1×0.30	62/0.08 45/0.10 18/0.15	70	0.07	1.80
	2×0.30				3.20
	3×0.30				3.50
	1× 0.35	75/0.08 45/0.10 19/0.16	60	0.07	1.95
	2× 0.35				3.40
	3× 0.35				3.70
	1× 0.40	85/0.08 54/0.10 24/0.15	55	0.07	2.00
	2× 0.40				3.50
	3× 0.40				3.90
	1× 0.50	105/0.08 66/0.10 29/0.15 19/0.18	42	0.07	2.20
	2× 0.50				3.90
	3× 0.50				4.30

型號	芯數×截面 mm2	導體結構 股數/直徑 mm	***大直流電阻 Ω/km  20℃	絕緣***薄厚度 mm	電線外徑	試驗電壓 kV
AFPF	1×0.035	7/0.08	600	0.07	1.30	0.8
	2×0.035				2.20
	3×0.035				2.50
	1×0.05	10/0.08 7/0.10	370	0.07	1.50
	2×0.05				2.40
	3×0.05				2.60
	1×0.07	14/0.08 7/0.12	260	0.07	1.60
	2×0.07				2.50
	3×0.07				2.80
	1×0.10	21/0.08	180	0.07	1.65
	2×0.10				2.60
	3×0.10				3.10
	1×0.12	24/0.08 7/0.15	165	0.07	1.70
	2×0.12				2.65
	3×0.12				3.15
	1×0.15	30/0.08 19/0.10	125	0.07	1.80
	2×0.15				2.80
	3×0.15				3.20
	1×0.20	42/0.08 27/0.10 12/0.15 19/0.12	100	0.07	2.05
	2×0.20				3.40
	3×0.20				3.55
	1×0.30	62/0.08 45/0.10 18/0.15	70	0.07	2.25
	2×0.30				3.70
	3×0.30				3.90
	1× 0.35	75/0.08 45/0.10 19/0.16	60	0.07	2.35
	2× 0.35				3.85
	3× 0.35				4.10
	1× 0.40	85/0.08 54/0.10 24/0.15	55	0.07	2.40
	2× 0.40				3.95
	3× 0.40				4.30
	1× 0.50	105/0.08 66/0.10 29/0.15 19/0.18	42	0.07	2.60
	2× 0.50				4.40
	3× 0.50				4.70
