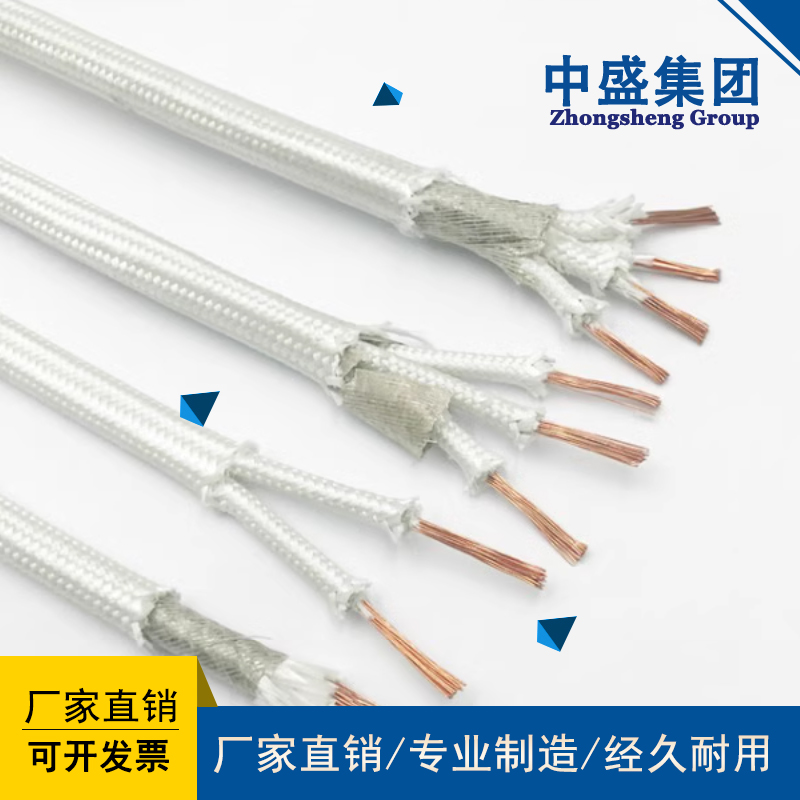

產品名稱：High temperature fire-resistant cable AHFBRP
瀏覽：
添加時間：2024-07-25 10:14:15
推薦度：

介紹：

AFHBR、AHFBRP耐高溫防火電纜適用于發電、冶金等高溫、防火、防腐等惡劣環境下使用。產品具有耐腐蝕，耐高溫，阻燃等優良特性。

AFHBR and AHFBRP high-temperature and fire-resistant cables are suitable for use in harsh environments such as power generation, metallurgy, high temperature, fire prevention, and corrosion prevention. The product has excellent characteristics such as corrosion resistance, high temperature resistance, and flame retardancy.

1.執行標準：

1. Execution standards:

AFHBR、AHFBRP耐高溫防火電纜按企業標準制造。

AFHBR and AHFBRP high-temperature resistant and fire-resistant cables are manufactured according to enterprise standards.

2.用途:

2. Purpose:

AFHBR、AHFBRP耐高溫防火電纜適用于發電、冶金等高溫、防火、防腐等惡劣環境下使用。產品具有耐腐蝕，耐高溫，阻燃等優良特性。

3.使用條件:

3. Usage conditions:

用于交流50Hz額定電壓600V

Used for AC 50Hz rated voltage 600V

一種使用溫度：-40℃-500℃

One type of operating temperature: -40 ℃ -500 ℃

一種使用溫度：40℃-800℃

One type of operating temperature: 40 ℃ -800 ℃

4.技術數據

4. Technical data

標稱截面mm2

Nominal cross-sectional area mm2

zui大外徑 mm

Zui large outer diameter mm

標稱截面mm2

Nominal cross-sectional area mm2

zui大外徑mm

Zui large outer diameter mm

3×1.5	9.2	3×2.5+3×1.5	11.8
3×2.5	10.5	3×4+1×1.5	13.9
3×4	13.6	3×6+1×2.5	17.1
3×6	15.8	3×10+1×4	19.6
3×10	17.5	3×16+1×10	23.5
3×16	19.8	3×25+1×16	28.3
3×25	25.3	3×35+1×16	35
