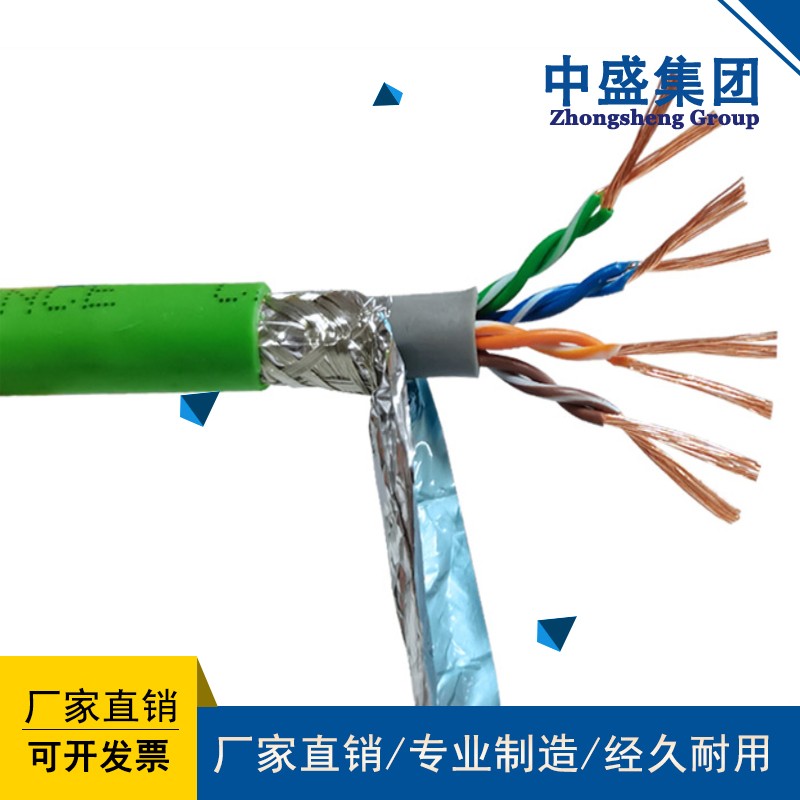

產品名稱：Encoder cableOil resistant signal control cableRVVYSP
瀏覽：
添加時間：2024-07-26 10:32:35
推薦度：

介紹：

用于機械設備或油污較重場所使用的耐油信號控制電纜

Oil resistant signal control cables used in mechanical equipment or areas with heavy oil pollution

● 兩兩絞合短節距對絞線芯

Twisted short pitch twisted pair cores in pairs

● 75%鍍錫銅絲編織屏蔽

75% tinned copper wire braided shielding

● 主耐油特性；柔性比普通雙絞屏蔽型要好,但不及柔性雙絞屏蔽電纜

● Main oil resistance characteristics; Flexibility is better than ordinary twisted pair shielded cables, but not as good as flexible twisted pair shielded cables

● 耐油測試通過ASTM標準、GB/T2951.5標準

Oil resistance test passed ASTM standard and GB/T2951.5 standard

典型應用：

Typical applications:

適合機床和起重運輸?shù)仍O(shè)備、機器的，各部件內外部連接，并有油性污染環境中使用，具備防油腐蝕特性同事兼?zhèn)漭^柔軟的特性，用于較多的場合如機床、磨床等

Suitable for equipment and machinery such as machine tools and lifting and transportation, with internal and external connections of various components, and used in oily polluted environments. It has anti oil corrosion properties and is also relatively soft, suitable for various occasions such as machine tools, grinders, etc

產品型號：

Product model:

RVVYSP 耐油型雙絞屏蔽電纜

RVVYSP oil resistant twisted pair shielded cable

應用標準：GB5023.7、60227 IEC 75、HD21.13

Application standards: GB5023.7, 60227 IEC 75, HD21.13

電纜結構：

Cable structure:

導體：多根裸銅絲或鍍錫銅絲絞合導體符合GB/T3956、VDE0295/IEC228、HD21.13第5種軟導體

Conductor: Multiple bare copper wires or tinned copper wires twisted together. The conductor complies with GB/T3956, VDE0295/IEC228, HD21.13, Class 5 soft conductor

絕緣：PVC/D型聚錄乙烯絕緣符合GB5023.1與GB/T8815

Insulation: PVC/D-type polyethylene insulation complies with GB5023.1 and GB/T8815

線芯：兩兩絞合短節距對絞線芯

Core: Twisted short pitch twisted pair cores in pairs

屏蔽：75%鍍錫銅絲編織屏蔽

Shielding: 75% tinned copper wire braided shielding

護套：ST9耐油型專用護套

Sheath: ST9 oil resistant special sheath

顏色：黑色(RAL9005) 灰色(RAL7001) 橙色(RAL2003)

Color: Black (RAL9005) Grey (RAL7001) Orange (RAL2003)

額定電壓：＜0.5mm2：300/300V ≥0.5mm2300/500V

Rated voltage:<0.5mm 2: 300/300V ≥ 0.5mm 2 300/500V
