- 產品名稱：Silicone rubber cable AGR
- 瀏覽：
- 添加時間：2024-07-26 17:13:40
- 推薦度：
產品簡介
Product Introduction

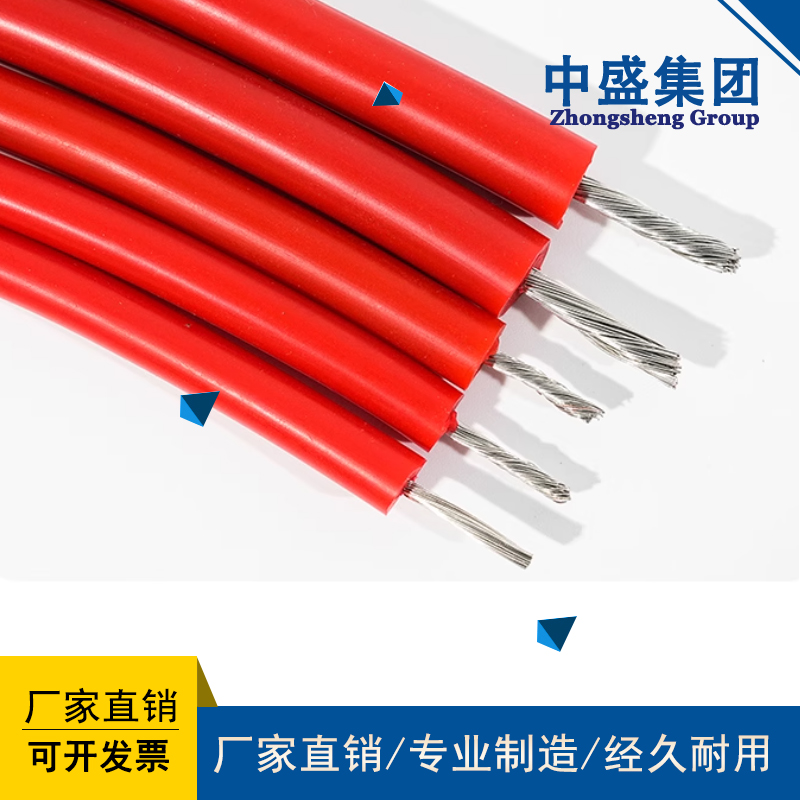

AGR硅橡膠電纜：鍍銀銅導體，硅橡膠絕緣
AGR silicone rubber cable: silver plated copper conductor, silicone rubber insulation
詳細介紹
Detailed Introduction
AGR硅橡膠電纜線產品執行標準：Q/IRMV1-2008
AGR Silicone Rubber Cable Product Execution Standard: Q/IRMV1-2008
額定電壓：600V
Rated voltage: 600V
耐壓試驗：2000V
Voltage withstand test: 2000V
溫度范圍：-60~+200℃
Temperature range: -60~+200 ℃
導體：鍍錫銅絲絞線
Conductor: Tin plated copper wire stranded wire
絕緣：PTFE鐵氟龍
Insulation: PTFE Teflon
顏色：紅、黃、藍、白、黑、黃綠、棕、綠等。
Colors: red, yellow, blue, white, black, yellow green, brown, green, etc.
交貨長度：準許不小于10米的短線段，但其數量不能超過交貨總數量的10%。
Delivery length: Short segments of no less than 10 meters are allowed, but their quantity cannot exceed 10% of the total delivery quantity.
AGR硅橡膠電纜線 產品性能：具有優良的耐高溫，耐低溫性能，具有優良的電氣絕緣性能，優良的化學穩定性能，而且特柔軟，耐老化性能，使用壽命長。
AGR silicone rubber cable product performance: It has excellent high and low temperature resistance, excellent electrical insulation performance, excellent chemical stability, and is particularly soft, aging resistant, and has a long service life.
產品應用：廣泛應用于照明燈具、家用電器、電熱電器、儀器儀表、電機引接線及電子、燈具、燃具等高溫環境。
Product application: Widely used in high-temperature environments such as lighting fixtures, household appliances, electric heating appliances, instruments and meters, motor wiring, electronics, lighting fixtures, and gas appliances.
規格、結構
Specification and structure
標準截面standard section | 導體結構 Conductor structure Number/diameter of wires （mm） | 絕緣厚度Insulation thickness | 電線外徑Outer diameter of wire | 20℃時導體直流電阻（Direct current resistance of conductor at 20 ℃Ω/km） | 包裝長度Packaging length |
0.20 | 12/0.15 | 0.60 | 1.80 | 92 | 100 |
0.30 | 16/0.15 | 0.60 | 1.85 | 61.2 | 100 |
0.40 | 23/0.15 | 0.60 | 2.00 | 46 | 100 |
0.50 | 28/0.15 | 0.60 | 2.10 | 36.8 | 100 |
0.75 | 42/0.15 | 0.70 | 2.50 | 24.5 | 100 |
1.00 | 32/0.20 | 0.70 | 2.70 | 18.4 | 100 |
1.5 | 30/0.25 | 0.70 | 3.00 | 12.3 | 100 |
2.5 | 49/0.25 | 0.80 | 3.70 | 7.36 | 100 |
4.0 | 56/0.30 | 1.0 | 4.80 | 5.09 | 100 |
6.0 | 84/0.30 | 1.0 | 5.30 | 3.06 | 100 |
10 | 84/0.40 | 1.0 | 6.80 | 1.85 | 100 |
16 | 128/0.40 | 1.50 | 8.80 | 1.15 | 100 |
25 | 198/0.40 | 1.50 | 10.70 | 0.795 | 100 |
注：根據供需雙方協議，可以生產其他規格的產品。 | |||||
