介紹：

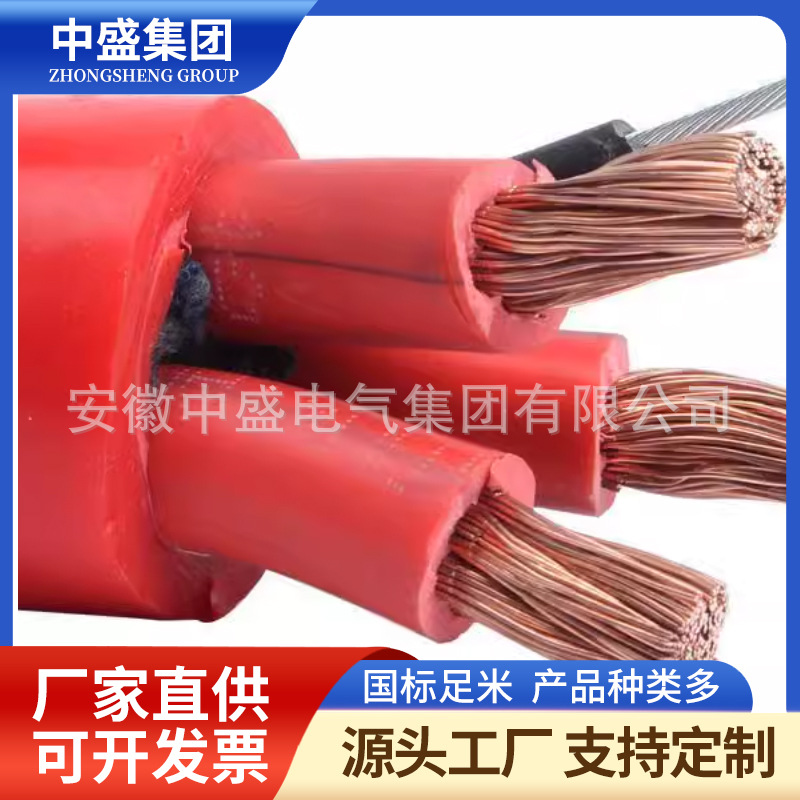

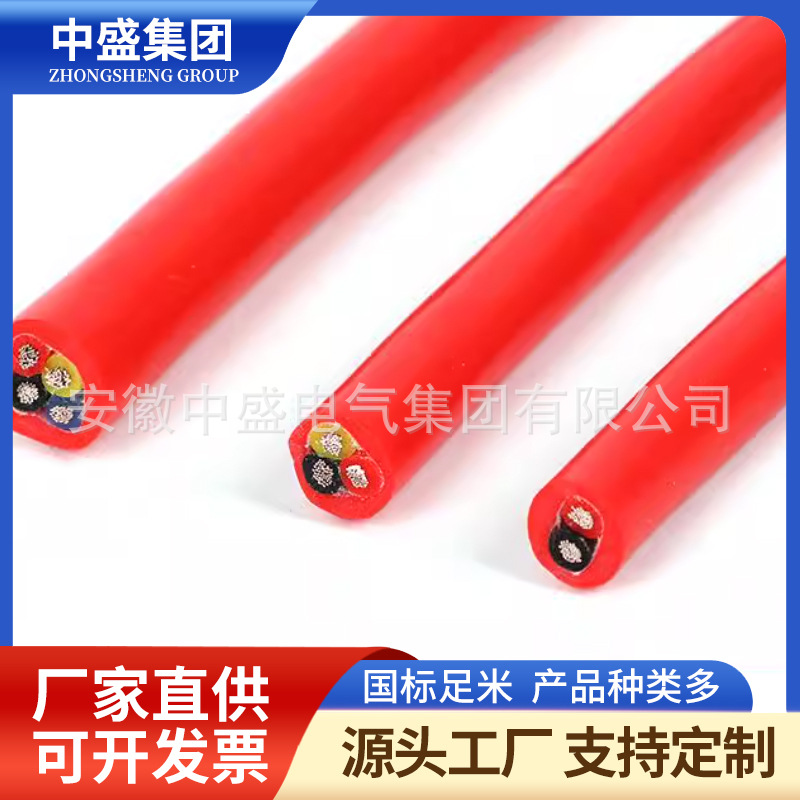

產品名稱： BPGGRP 銅芯硅橡膠絕緣及護套銅絲編織屏蔽變頻器用動力電纜
Product Name: BPGGRP copper core silicone rubber insulated and sheathed copper wire braided shielded power cable for frequency converters
1．用途
本產品適用于耐溫等級較高的變頻器電力傳輸系統。
1. Purpose
This product is suitable for high temperature resistant frequency converter power transmission systems.
2．產品型號及名稱
2. Product model and name
型號model | 名稱 name |
BPGGRP | 銅芯硅橡膠絕緣及護套銅絲編織屏蔽變頻器用動力電纜 Copper core silicone rubber insulated and sheathed copper wire braided shielded power cable for frequency converters |
BPGGRPP | 銅芯硅橡膠絕緣及護套雙層銅絲編織屏蔽變頻器用動力電纜 Copper core silicone rubber insulated and sheathed double-layer copper wire braided shielded power cable for frequency converters |
BPGXGRP11 | 鍍錫銅芯硅橡膠絕緣及護會鍍錫銅絲編織屏蔽變頻器用動力電纜 Tin plated copper core silicone rubber insulation and protection, tin plated copper wire braided shielding power cable for frequency converters |
BPGXGRP11P11 | 鍍錫銅芯硅橡膠絕緣及護套雙層鍍錫銅絲編織屏蔽變頻器用動力電纜Tinned copper core silicone rubber insulated and sheathed double-layer tinned copper wire braided shielded power cable for frequency converters |
BPGGRP1-2 | 銅芯硅橡膠絕緣及護會銅絲纏繞銅帶繞包復合屏蔽變頻器用動力電纜Copper core silicone rubber insulation and protection, copper wire winding, copper tape winding, composite shielding, power cable for frequency converters |
3. 規格
3. Specifications
型號model | 額定電壓(kV) Rated voltage (kV) | 芯數 CORE | 主線芯標稱截面mm2 Main core nominal cross-sectional area mm2 |
BPGGRP BPGGRPP BPGXGRP11 BPGXGRP11P11 BPGGRP 1-2 | 0.6/1 | 3+3 | 4 ~ 300 |
