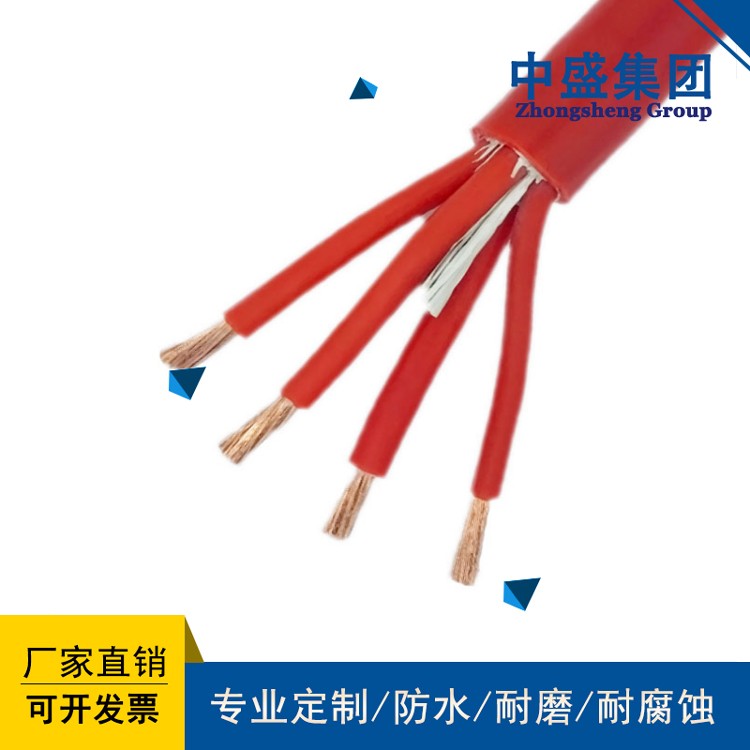

- 產品名稱：YGPB-6KV bucket wheel machine reclaimer stacker special flat
- 瀏覽：
- 添加時間：2025-04-01 16:46:56
- 推薦度：
本產品適用于港口隨堆取料機裝、卸貨物時移動的場合．起信號控制和動力傳輸?shù)淖饔?。也適用于需經常往復運動作業的其它設備。
This product is suitable for situations where the port stacker reclaimer moves during loading and unloading of goods. It plays a role in signal control and power transmission. It is also applicable to other equipment that requires frequent reciprocating motion operations.
高壓扁電纜，港口用扁型硅橡膠軟電纜，煤場斗輪機用6KV，10KV 港口用扁型硅橡膠軟電纜10KV 港口用扁型硅橡膠軟電纜為額定電壓6KV，10KV移動配電裝置及港口起重運輸機械用銅芯硅橡膠絕緣硅橡膠護套扁型軟電纜。
High voltage flat cables, flat silicone rubber flexible cables for ports, 6KV and 10KV flat silicone rubber flexible cables for coal yard bucket wheel machines, 10KV flat silicone rubber flexible cables for ports with rated voltage of 6KV, copper core silicone rubber insulated silicone rubber sheathed flat flexible cables for 10KV mobile distribution equipment and port lifting and transportation machinery.
產品結構：
Product Structure:
1）信號控制扁電纜：導電線芯+絕緣層+內稱層+屏蔽層+保護層+外護層
1) Signal control flat cable: conductive core+insulation layer+inner layer+shielding layer+protective layer+outer protective layer
2）動力傳輸扁電纜：導電線芯+內半導電層+絕緣層+外半導電層+銅絲編織與加強層+外護層
2) Power transmission flat cable: conductive core+inner semiconductive layer+insulation layer+outer semiconductive layer+copper wire braided and reinforced layer+outer protective layer
| 型號model | 產品名稱product name | 用途purpose | 導體長期允許 工作溫度Long term allowable operating temperature for conductors ℃ | 額定電壓rated voltageV | 標稱截面Nominal cross-sectionmm2 |
| YGPB | 斗輪機專用扁電纜Special flat cable for bucket wheel machine取料機專用扁電纜Special flat cable for reclaimer堆料機專用扁電纜Special flat cable for stacker | 適用于斗輪機、取料機、堆料機等重型設備做動力傳輸線，亦適用于各類起重設備Suitable for heavy-duty equipment such as bucket wheel machines, reclaimers, and stackers as power transmission lines, as well as various types of lifting equipment | -40 ~ +90 | 6000 10000 | 10 ~ 240 |
| 電纜結構/尺寸表 Cable Structure/Size Table |
| 型號model | 芯數x截面Number of cores x cross-section mm2 | 電纜外型尺寸Cable dimensions | 電纜參考重量Reference weight of cableKG/KM | |
| 高h(yuǎn)eight mm | 寬 wide mm | |||
| YGPB-6KV | 3x16+3x16/3 | 27 | 63 | 2815 |
| 3x25+3x16/3 | 29 | 68 | 4100 | |
| 3x35+3x16/3 | 31 | 72 | 4750 | |
| 3x50+3x16/3 | 34 | 77 | 6300 | |
| 3x70+3x25/3 | 36 | 83 | 7380 | |
| 3x95+3x35/3 | 38 | 90 | 7800 | |
| 3x120+3x35/3 | 40 | 98 | 9500 | |
| YGPB-10KV | 3x16+3x16/3 | 32 | 73 | 3700 |
| 3x25+3x16/3 | 34 | 78 | 4300 | |
| 3x35+3x16/3 | 35 | 82 | 4800 | |
| 3x50+3x16/3 | 如需更詳細的參數，可來電訂制If you need more detailed parameters, you can call us for customization | |||
| 3x70+3x25/3 | ||||
| 3x95+3x35/3 | ||||
| 3x120+3x35/3 | ||||
| 注：以上規格為常用型，可根據用戶要求定制特殊規格Note: The above specifications are common types, and special specifications can be customized according to user requirements |
