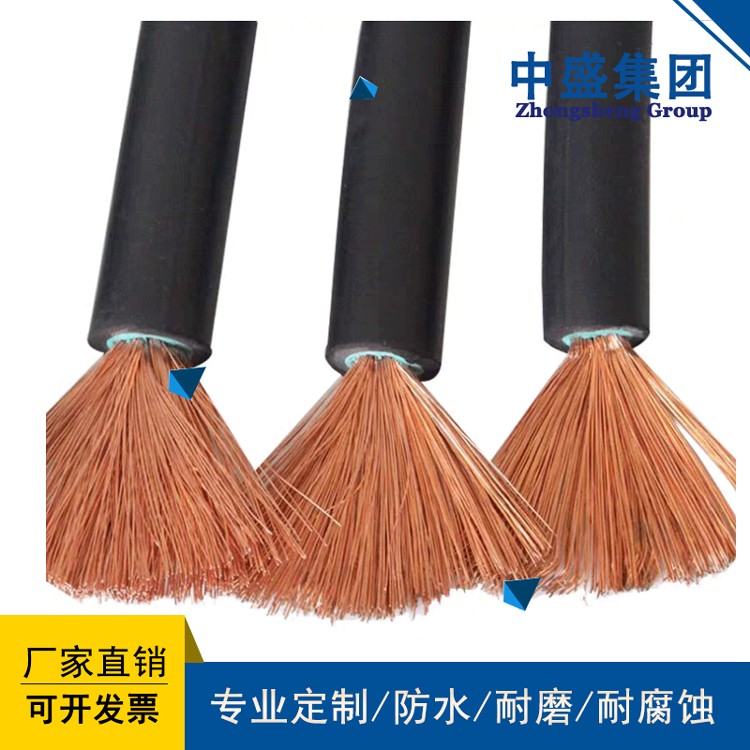

產品名稱：YC heavy-duty universal rubber sheathed cable
瀏覽：
添加時間：2025-04-01 16:51:59
推薦度：

介紹：

YC電纜全稱重型通用橡套電纜，是俗稱的橡套線的一種。yc電纜適用于交流額定電壓450/750V以下家用電器、電動工具和各種移動式電器設備或輕型移動電氣設備，或用于工地上臨時施工用，能承受較大的機械外力作用。線芯的長期允許工作溫度應不超過60℃。

YC cable, also known as heavy-duty universal rubber sheathed cable, is a type of commonly known rubber sheathed wire. YC cable is suitable for household appliances, power tools, various mobile electrical equipment or lightweight mobile electrical equipment with AC rated voltage below 450/750V, or for temporary construction on construction sites, and can withstand large mechanical external forces. The long-term allowable working temperature of the wire core should not exceed 60 ℃.

YZ、YZW是中型橡套軟電纜，用于交流額定電壓為300／500V及以下的家用電器、電動工具和各類移動電器設備。

YZ and YZW are medium-sized rubber sheathed flexible cables used for household appliances, power tools, and various mobile electrical equipment with AC rated voltage of 300/500V and below.

使用標準：JB8735.2-1998。

Usage standard: JB8735.2-1998。

使用特性：（1）YZ型額定電壓Uo／U為300／500V

Usage characteristics: (1) YZ type rated voltage Uo/U is 300/500V

（2）線芯的長期允許工作溫度不超過60℃。

(2) The long-term allowable working temperature of the wire core shall not exceed 60 ℃.

（3）W型電纜具有耐氣候和一定的耐油性能，適宜于在戶外或接觸油污的場合使用。

(3) W-shaped cables have weather resistance and certain oil resistance, making them suitable for use outdoors or in situations where they come into contact with oil stains.

（4）ZR型電纜具有阻燃性能。

(4) ZR type cables have flame retardant properties.

YQ，YQW　輕型橡套軟電纜　用于輕型移動電器設備和工具

YQ, YQW lightweight rubber sheathed flexible cable used for lightweight mobile electrical equipment and tools

YZ，YZW　中型橡套軟電纜　用于各種移動電器設備和工具

YZ and YZW medium-sized rubber sheathed flexible cables are used for various mobile electrical equipment and tools

YC，YCW　重型橡套軟電纜　用于各種移動電器設備，能承受較大的機械外力作用

YC, YCW heavy-duty rubber sheathed flexible cables are used for various mobile electrical equipment and can withstand significant mechanical external forces

YZ中型橡套軟電纜型號和規格：

YZ medium-sized rubber sheathed flexible cable model and specification:

2×（0.7511.52.546）
    3×（0.7511.52.546）
    4×（0.7511.52.546）
    3×1.5+1×1.0 3×2.5+1×1.5 3×4+1×2.5 3×6+1×4 3×1.5+2×1.0
    3×2.5+2×1.5 3×4+2×2.5 3×6+2×4 4×1.5+1×1.0 4×2.5+1×2.5
    4×4+1×2.5 4×6+1×4
