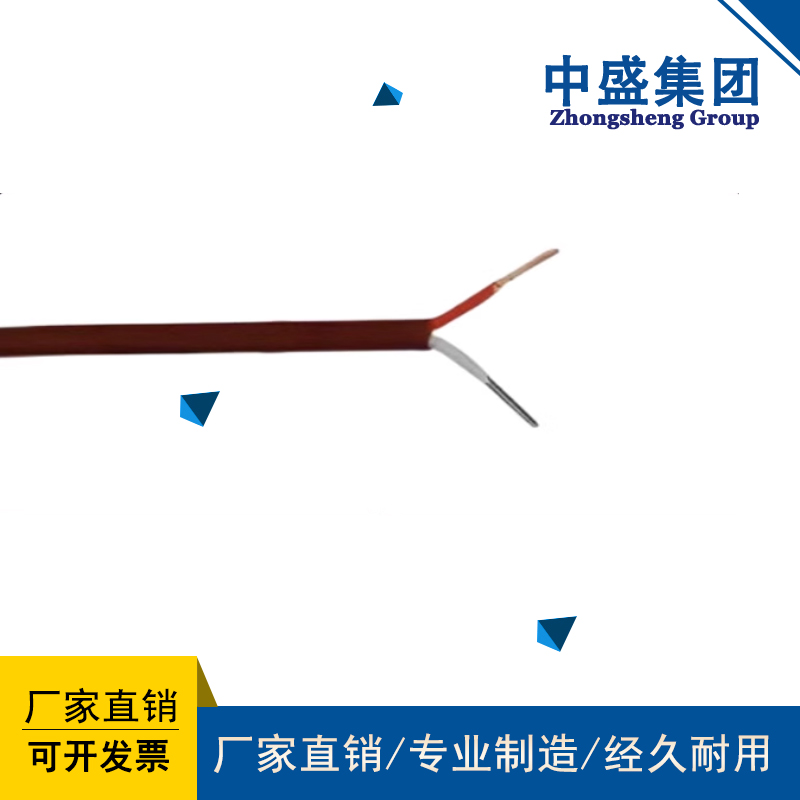

- 產品名稱：High temperature compensation cable ZR-KX-HS-FPFP
- 瀏覽：
- 添加時間：2025-04-03 15:51:59
- 推薦度：
產品描述
product description
導體：合金材質
Conductor: Alloy material
絕緣：一般用途為聚氯乙烯或聚乙烯或交聯基乙烯，耐高溫用硅橡膠或氟塑料
Insulation: Generally used for polyvinyl chloride or polyethylene or cross-linked ethylene, high temperature resistant silicone rubber or fluoroplastic
屏蔽：高精度無氧軟銅絲或鍍錫軟銅絲，屏蔽密度≥80%
Shielding: High precision oxygen free soft copper wire or tin plated soft copper wire, shielding density ≥ 80%
護套：一般用途為（阻燃）聚氯乙烯，耐高溫用硅橡膠或氟塑料
Sheath: Generally used for (flame retardant) polyvinyl chloride, high temperature resistant silicone rubber or fluoroplastic
使用補償導線的目的：
The purpose of using compensating wires is to:
a. 將熱電偶的參考端從高溫處移到環境溫度較穩定的地方。
a. Move the reference end of the thermocouple from a high temperature location to a more stable ambient temperature.
b. 節省大量的用于制造熱電極的貴重和稀有金屬材料。
b. Save a significant amount of precious and rare metal materials used for manufacturing thermoelectric electrodes.
c. 使用補償導線便于安裝和線路的敷設。
c. The use of compensating wires facilitates installation and wiring.
d. 用較粗直徑和導電系數大的補償導線代替熱電極，可以減少熱電偶回路電阻，利于測量和自動控制。
d. Replacing the thermoelectric electrode with a compensating wire with a thicker diameter and higher conductivity can reduce the resistance of the thermocouple circuit, facilitating measurement and automatic control.
使用補償導線時應注意以下幾點：
When using compensating wires, the following points should be noted:
A. 各種補償導線只能與相應型號的熱電偶配用，就是各種熱電偶和所配用的補償導線在規定溫度（0～100℃）范圍內熱電特性須***是相同的。
A. Various compensation wires can only be used with corresponding models of thermocouples, which means that the thermoelectric characteristics of various thermocouples and the compensation wires used must be the same within the specified temperature range (0-100 ℃).
B. 補償導線和熱電偶連接點的溫度不得超過規定的使用溫度。
B. The temperature of the compensation wire and thermocouple connection point shall not exceed the specified operating temperature.
C. 補償導線和熱電偶、儀表連接時，正負極不能接錯，而且兩對連接點要處于相同的溫度。
C. When connecting compensation wires, thermocouples, and instruments, the positive and negative poles must not be connected incorrectly, and the two pairs of connection points must be at the same temperature.
D. 要根據所配儀表的線路電阻要求，選用補償導線的線徑。
D. The diameter of the compensating wire should be selected according to the line resistance requirements of the equipped instrument.
