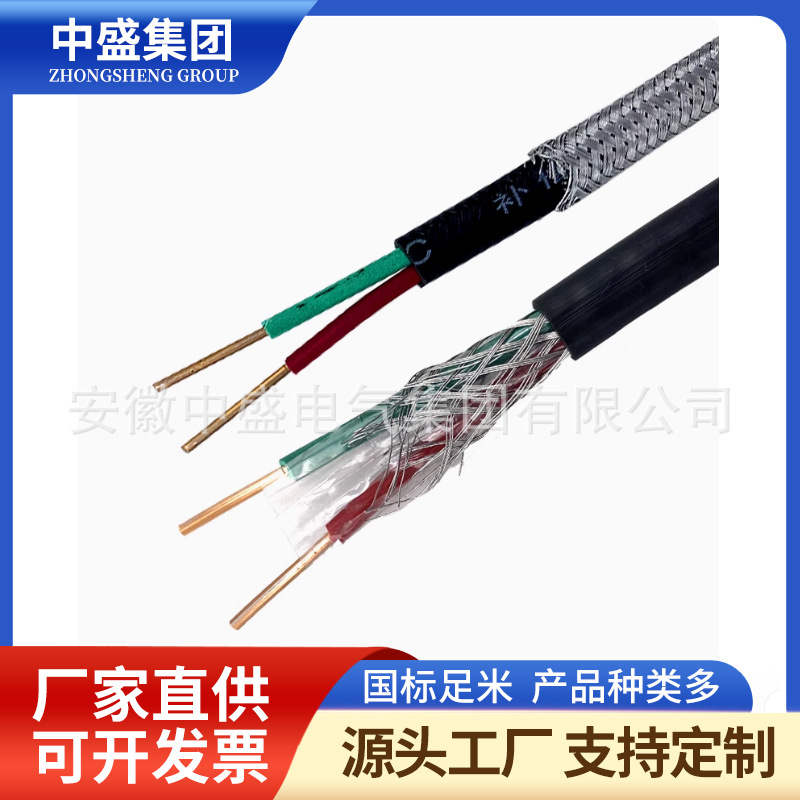

- 產品名稱：Compensation cable ZR-KX-GA-VVP
- 瀏覽：
- 添加時間：2025-04-03 16:40:09
- 推薦度：
一：產品特點及用途
1： Product Features and Applications
一般用聚氯乙烯絕緣和護套補償導線或電纜具有優良的防潮、耐磨及阻燃特性；耐高溫氟塑料絕緣和護套補償導線或電纜采用連續擠出工藝，更有耐高溫、耐寒、耐酸堿油水、不延燃、***等優越性，產品質量高于國標GB/T4989-94(等效采用IEC584-3)的規定。
Generally, PVC insulated and sheathed compensating wires or cables have excellent moisture-proof, wear-resistant, and flame-retardant properties; High temperature resistant fluoroplastic insulated and sheathed compensating wires or cables adopt continuous extrusion technology, which has advantages such as high temperature resistance, cold resistance, acid alkali oil-water resistance, non flame retardant, and * * *. The product quality is higher than the national standard GB/T4989-94 (equivalent to IEC584-3).
本質安全防爆測溫系統用補償導線或電纜采用低電容、低電感材料結構，具有防爆安全性能，適用于有爆炸危險的環境下作防爆熱電偶冷短與防爆測溫儀表連接，形成本安熱電偶測溫系統。
The compensating wire or cable used in the intrinsic safety explosion-proof temperature measurement system adopts a low capacitance and low inductance material structure, which has explosion-proof safety performance and is suitable for connecting explosion-proof thermocouples with explosion-proof temperature measurement instruments in environments with explosive hazards, forming an intrinsic safety thermocouple temperature measurement system.
二：產品執行標準
2： Product execution standards
GB/T4989-94(等效采用IEC584-3標準)
GB/T4989-94 (equivalent to IEC584-3 standard)
三：使用特性
3： Usage characteristics
1． 導體工作溫度：耐熱級：聚全氟乙丙烯(F46)200℃
1. Conductor operating temperature: Heat resistance grade: Perfluoroethylene propylene (F46) 200 ℃
可溶性聚四氟乙烯260℃
Soluble polytetrafluoroethylene 260 ℃
硅橡膠180℃
Silicone rubber at 180 ℃
普通級：聚氯乙烯70℃和105℃，交聯聚乙烯90℃
Ordinary grade: polyvinyl chloride at 70 ℃ and 105 ℃, cross-linked polyethylene at 90 ℃
低煙無鹵阻燃聚烯烴70℃，交聯型90℃和125℃
Low smoke halogen-free flame-retardant polyolefin at 70 ℃, cross-linked at 90 ℃ and 125 ℃
2． 低環境溫度： 聚氯乙烯護套：固定敷設-40℃，非固定敷設-15℃
2. Low ambient temperature: PVC sheath: fixed installation -40 ℃, non fixed installation -15 ℃
氟塑料絕緣和護套：固定敷設-60℃，非固定敷設-20℃
Fluoroplastic insulation and sheath: fixed installation -60 ℃, non fixed installation -20 ℃
3． 電纜允許彎曲半徑： 非鎧裝電纜***小為外徑的6倍
3. Allowable bending radius for cables: The minimum allowable bending radius for non armored cables is 6 times the outer diameter
銅帶屏蔽或鋼帶鎧裝點纜***小為電纜外徑的12倍
Copper tape shielded or steel tape armored point cables shall have a minimum diameter of 12 times the outer diameter of the cable
氟塑料絕緣和護套***小為電纜外徑的10倍
Fluoroplastic insulation and sheath with a minimum of 10 times the outer diameter of the cable
四：基本型號及名稱
4： Basic model and name
1：熱電偶用補償導線
1: Compensation wire for thermocouple
KX-GA-VV | 聚氯乙烯絕緣聚氯乙烯護套精密級K分度號熱電偶補償導線 PVC insulated PVC sheathed precision grade K division thermocouple compensation wire |
KX-GA-VVR | 聚氯乙烯絕緣聚氯乙烯護套精密級K分度號熱電偶補償軟導線 PVC insulated PVC sheathed precision grade K division thermocouple compensation flexible wire |
KX-GA-VVP | 聚氯乙烯絕緣聚氯乙烯護套銅絲編織屏蔽精密級K分度號熱電偶補償導線 PVC insulated PVC sheathed copper wire braided shielding precision grade K division thermocouple compensation wire |
KX-GA-VVRP | 聚氯乙烯絕緣聚氯乙烯護套銅絲編織屏蔽精密級K分度號熱電偶補償軟導線 PVC insulated PVC sheathed copper wire braided shielding precision grade K division thermocouple compensation flexible wire |
KX-HA-FF | 氟塑料絕緣和護套精密級K分度號熱電偶補償導線 Fluoroplastic insulation and sheath precision grade K division thermocouple compensation wire |
KX-HA-FFR | 氟塑料絕緣和護套精密級K分度號熱電偶補償軟導線 Fluoroplastic insulation and sheath precision grade K division thermocouple compensation flexible wire |
KX-HA-FFP | 氟塑料絕緣和護套銅絲編織屏蔽精密級K分度號熱電偶補償導線 Fluoroplastic insulated and sheathed copper wire braided shielding precision grade K division thermocouple compensation wire |
KX-HA-FFRP | 氟塑料絕緣和護套銅絲編織屏蔽精密級K分度號熱電偶補償軟導線 Fluoroplastic insulated and sheathed copper wire braided shielding precision grade K division thermocouple compensation flexible wire |
KX-HA-FG | 氟塑料絕緣硅橡膠護套精密級K分度號熱電偶補償導線 Fluoroplastic insulated silicone rubber sheathed precision grade K division thermocouple compensation wire |
KX-HA-FGR | 氟塑料絕緣硅橡膠護套精密級K分度號熱電偶補償軟導線 Fluoroplastic insulated silicone rubber sheath precision grade K division thermocouple compensation flexible wire |
KX-HA-FGP | 氟塑料絕緣硅橡膠護套銅絲編織屏蔽精密級K分度號熱電偶補償導線 Fluoroplastic insulation, silicone rubber sheath, copper wire braided shielding, precision grade K division thermocouple compensation wire |
KX-HA-FGRP | 氟塑料絕緣硅橡膠護套銅絲編織屏蔽精密級K分度號熱電偶補償軟導線 Fluoroplastic insulation, silicone rubber sheath, copper wire braided shielding, precision grade K division thermocouple compensation flexible wire |
KX-HA-FV | 氟塑料絕緣聚氯乙烯護套精密級K分度號熱電偶補償導線 Fluoroplastic insulated PVC sheathed precision grade K division thermocouple compensation wire |
KX-HA-FVR | 氟塑料絕緣聚氯乙烯護套精密級K分度號熱電偶補償軟導線 Fluoroplastic insulated PVC sheathed precision grade K division thermocouple compensation flexible wire |
KX-HA-FVP | 氟塑料絕緣聚氯乙烯護套銅絲編織屏蔽精密級K分度號熱電偶補償導線 Fluoroplastic insulated PVC sheathed copper wire braided shielding precision grade K division thermocouple compensation wire |
KX-HA-FVRP | 氟塑料絕緣聚氯乙烯護套銅絲編織屏蔽精密級K分度號熱電偶補償軟導線 Fluoroplastic insulated PVC sheathed copper wire braided shielding precision grade K division thermocouple compensation flexible wire |
KX-GA-YJV | 交聯聚乙烯絕緣聚氯乙烯護套精密級K分度號熱電偶補償導線 Cross linked polyethylene insulated polyvinyl chloride sheathed precision grade K division thermocouple compensation wire |
KX-GA-YJVR | 交聯聚乙烯絕緣聚氯乙烯護套精密級K分度號熱電偶補償軟導線 Cross linked polyethylene insulated polyvinyl chloride sheathed precision grade K division thermocouple compensation flexible wire |
KX-GA-YJVP | 交聯聚乙烯絕緣聚氯乙烯護套銅絲編織屏蔽精密級K分度號熱電偶補償導線Cross linked polyethylene insulation, polyvinyl chloride sheath, copper wire braided shielding, precision grade K division thermocouple compensation wire |
KX-GA-YJVRP | 低煙無鹵絕緣和護套銅絲編織屏蔽精密級K分度號熱電偶補償軟導線 Low smoke halogen-free insulated and sheathed copper wire braided shielding precision grade K division thermocouple compensation flexible wire |
KX-GA-YDYD | 低煙無鹵絕緣和護套精密級K分度號熱電偶補償導線Low smoke halogen-free insulation and sheath precision grade K division thermocouple compensation wire |
KX-GA- YDYD R | 低煙無鹵絕緣和護套精密級K分度號熱電偶補償軟導線Low smoke halogen-free insulation and sheath precision grade K division thermocouple compensation flexible wire |
KX-GA- YDYD P | 低煙無鹵絕緣和護套銅絲編織屏蔽精密級K分度號熱電偶補償導線 Low smoke halogen-free insulated and sheathed copper wire braided shielding precision grade K division thermocouple compensation wire |
KX-GA- YDYD RP | 低煙無鹵絕緣和護套銅絲編織屏蔽精密級K分度號熱電偶補償軟導線 Low smoke halogen-free insulated and sheathed copper wire braided shielding precision grade K division thermocouple compensation flexible wire |
注：上述型號僅列出KX，其他如SC、KC、EX、BC、TX、JX只需改變型號項即可， 阻燃型補償導線型號前加ZR，ZR192為進口PFA材料， 注：上述型號僅列出KX，其他如SC、KC、EX、BC、TX、JX只需改變型號項即可， Note: The above models only list KX, while others such as SC, KC, EX, BC, TX, JX only need to change the model item, 阻燃型補償導線型號前加ZR，ZR192為進口PFA材料， Add ZR to the front of the flame-retardant compensating wire model, ZR192 is made of imported PFA material, | |
