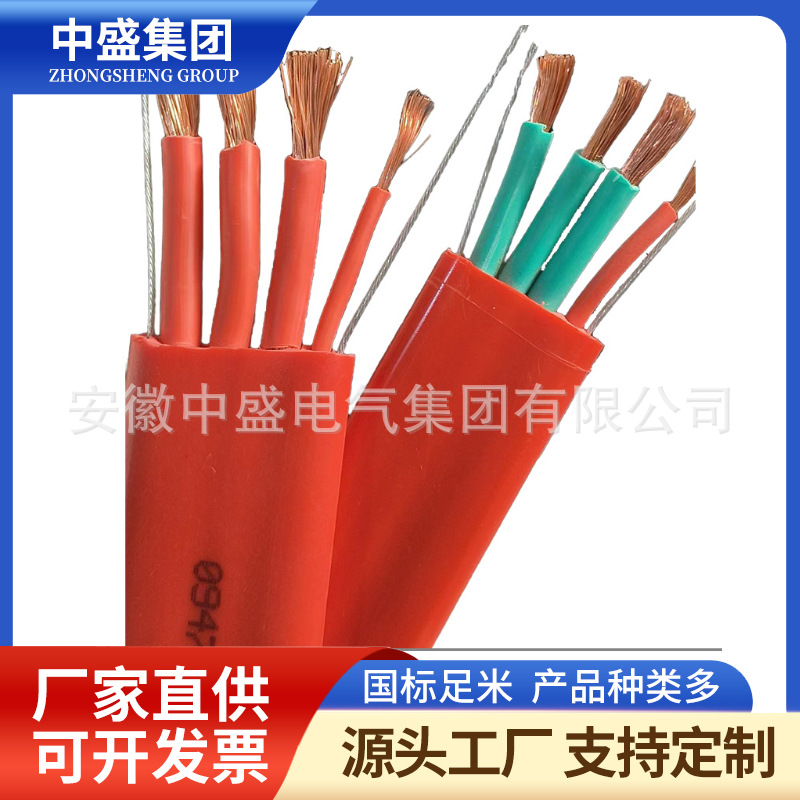

- 產品名稱：Wear resistant and oil resistant traveling flat cable YVFB
- 瀏覽：
- 添加時間：2025-04-07 13:49:33
- 推薦度：
一：產品特點及用途
1： Product Features and Applications
YVFB扁電纜具有耐寒、柔軟、耐磨、防油等特性，適用于交流額定電壓0.6/1KV及以下具有耐寒、防油等特殊要求的移動電器用連接電纜，目前YFFB屏蔽扁電纜已廣泛應用于冶金、電力、船舶、汽車制造等行業。
YVFB flat cable has the characteristics of cold resistance, flexibility, wear resistance, and oil resistance, and is suitable for connecting cables for mobile electrical appliances with special requirements such as cold resistance and oil resistance for AC rated voltage of 0.6/1KV and below. Currently, YFFB shielded flat cable has been widely used in industries such as metallurgy, power, shipbuilding, and automobile manufacturing.
二：產品執行標準
2： Product execution standards
企業標準
Enterprise standards
阻燃性能試驗執行GB12666-90規定
Flame retardant performance test shall comply with GB12666-90 regulations
三：使用特性
3： Usage characteristics
1． 交流額定電壓：U0/U 0.6/1KV
1. Rated AC voltage: U0/U 0.6/1KV
工作溫度： 105℃
Working temperature: 105℃
低環境溫度：固定敷設-15℃
Low ambient temperature: Fixed installation -15 ℃
2． 電纜安裝敷設溫度應不低于-25℃。
2. The temperature for cable installation and laying should not be lower than -25 ℃.
3． 電纜允許彎曲半徑：電纜***小為電纜外徑的12倍
3. Allowable bending radius of cable: The minimum bending radius of the cable is 12 times the outer diameter of the cable
四：基本型號及名稱
4： Basic model and name
型號
model
產品名稱
product name
YFFBG
YFFBG
丁晴復合物絕緣和護套加鋼絲移動扁平軟電纜
Ding Qing composite insulated and sheathed mobile flat flexible cable with steel wire
YFFBP
YFFBP
丁晴復合物絕緣和護套銅絲屏蔽移動扁平軟電纜
Ding Qing composite insulated and sheathed copper wire shielded mobile flat flexible cable
YVFRB
YVFRB
丁晴絕緣和護套電力軟扁電纜
Ding Qing insulated and sheathed power flexible flat cable
