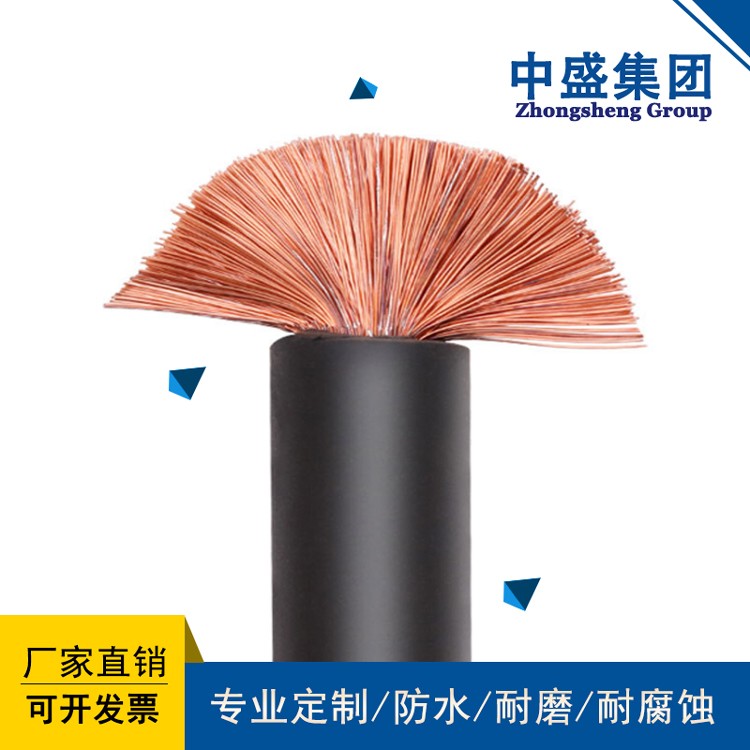

產品名稱：Heavy duty rubber sheathed flexible cable YC
瀏覽：
添加時間：2025-04-07 15:01:13
推薦度：

介紹：

通用橡套軟電纜簡稱橡套電纜，分為高壓橡套軟電纜和750V通用橡套軟電纜。高壓橡套軟電纜用途：交流額定電壓6kv及以下移動配電裝置及礦山采掘機械；起重運輸機械等。低壓橡套軟電纜適用于交流額定電壓750V及以下家用電器、電動工具和各種移動式電器設備用其中分為輕型、中型和重型三種型號電纜。

General rubber sheathed flexible cables, abbreviated as rubber sheathed cables, are divided into high-voltage rubber sheathed flexible cables and 750V general rubber sheathed flexible cables. Application of high-voltage rubber sheathed flexible cable: Mobile power distribution equipment and mining machinery with AC rated voltage of 6kV and below; Lifting and transportation machinery, etc. Low voltage rubber sheathed flexible cables are suitable for household appliances, power tools, and various mobile electrical equipment with an AC rated voltage of 750V and below. There are three types of cables: light, medium, and heavy.

野外用橡套電纜（YCW電纜，YZW電纜,橡套電纜-YZW電纜-YCW電纜-YC,YZ電纜）是

Outdoor rubber sheathed cables (YCW cables, YZW cables, rubber sheathed cables - YZW cables - YCW cables - YCW cables - YC cables, YZ cables) are

為適應野外用工礦企業調整發展的需要，生產性能優良的橡皮絕緣，橡皮護套和延燃重型橡套軟電纜。

To meet the needs of the adjustment and development of industrial and mining enterprises in the field, we produce high-performance rubber insulation, rubber sheath, and extended flame heavy-duty rubber sheathed flexible cables.

型號

model

產品名稱

product name

電壓KV

Voltage KV

芯數No

Number of cores No

截面mm2

Cross section mm2

主要使用范圍

Main application scope

YZW

野外用中型橡套軟電纜

Medium sized rubber sheathed flexible cable for outdoor use

300-500

two

3.4

three point four

five

3+1

0.75-6

1.0-6

用于交流電壓450/750V及以下各種移動電器設備，能承受較大的機械外力作用，長期工作溫度應不超過65℃，適用于戶外或接觸油污場合。

Used for various mobile electrical equipment with AC voltage of 450/750V and below, capable of withstanding large mechanical external forces, long-term working temperature should not exceed 65 ℃, suitable for outdoor or oil contaminated environments.

YCW

野外用重型橡套軟電纜

Heavy duty rubber sheathed flexible cable for outdoor use

450-750

one

two

three

four

five

1.5-400

1.0-25

1.0-95

1.0-150

1.0-25

用于交流電壓450/750V及以下各種移動電器設備，能承受較大的機械外力作用，適用于戶外或接觸油污場合，長期工作應不超過60℃

Used for various mobile electrical equipment with AC voltage of 450/750V and below, capable of withstanding significant mechanical external forces, suitable for outdoor or oil contaminated environments, and should not exceed 60 ℃ for long-term operation

一、通用橡套軟電纜用途

1、 Application of universal rubber sheathed flexible cable

本產品用于交流額定電壓為450/750V及以下的家用電器、電動工具和各類移動電器設備。

This product is used for household appliances, power tools, and various mobile electrical equipment with an AC rated voltage of 450/750V and below.

二、使用特性

2、 Usage characteristics

（1） YZ型額定電壓Uo/U為300/500V，YC型為450/750V。

(1) The rated voltage Uo/U of YZ type is 300/500V, while YC type is 450/750V.

（2）線芯的長期允許工作溫度不超過65℃。

(2) The long-term allowable working temperature of the wire core shall not exceed 65 ℃.

（3） W型電纜具有耐氣候和一定的耐油性能，適宜于在戶外或接觸油污的場合使用。

(3) W-shaped cables have weather resistance and certain oil resistance, making them suitable for use outdoors or in situations where they come into contact with oil stains.

（4） ZR型電纜具有阻燃性能。

(4) ZR type cables have flame retardant properties.

型號

model

名稱

name

主要用途

Main purpose

YQ,YQW

輕型橡套軟電纜

yqw

用于輕型移動電器設備和工具
