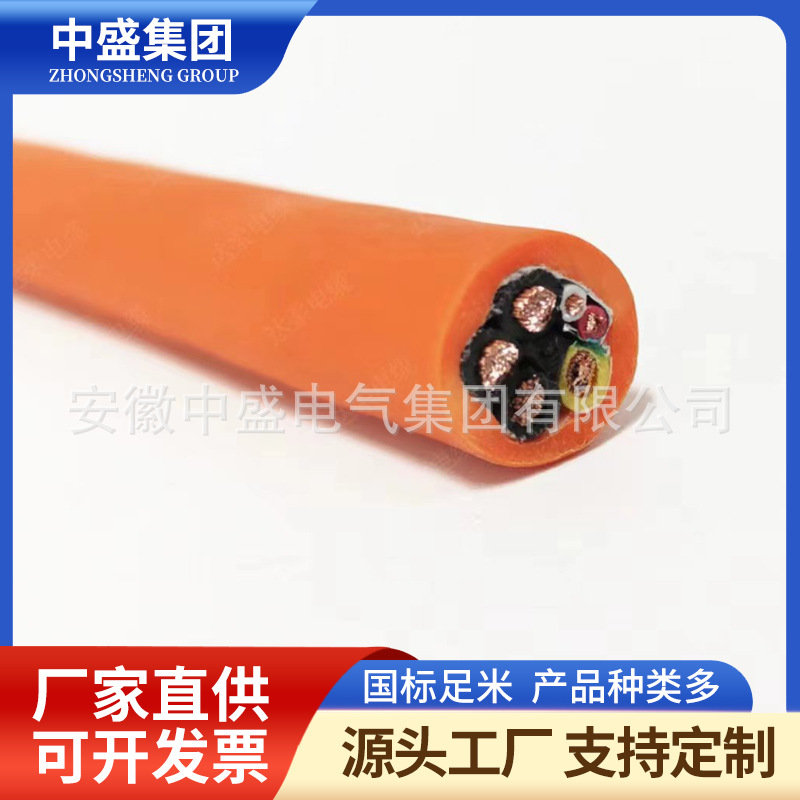

- 產品名稱：Flexible control cable ZR-RVF
- 瀏覽：
- 添加時間：2025-05-06 17:04:53
- 推薦度：
導體為較細裸軟銅或鍍錫銅絲,屏蔽層為絕緣為裸軟銅或鍍錫銅絲，高強度PVC絕緣，護套為熱塑性彈性體或聚氨酯及其它復合PVC材料,電線具體較好的柔軟性及耐彎折性能,有較強的屏蔽效果，適用于各種要求移動的機器機械設備上。
The conductor is made of thin bare soft copper or tin plated copper wire, the shielding layer is insulated with bare soft copper or tin plated copper wire, high-strength PVC insulation, and the sheath is made of thermoplastic elastomer or polyurethane and other composite PVC materials. The wire has good flexibility and bending resistance, and has strong shielding effect, suitable for various mobile machinery and equipment. h
超軟柔性電纜
Ultra soft flexible cable
RVFP聚氯乙烯絕緣屏蔽復合物護套軟線
RVFP PVC insulated shielding composite sheathed flexible wire
芯數 2~50
Core count 2~50
護套材質 熱縮性彈性體或TPU
Sheath material: heat shrinkable elastomer or TPU
材料形狀 圓線
Material shape: Round line
電線***大外徑 25（mm）
Maximum outer diameter of wire 25 (mm)
絕緣厚度 2.2（mm）
Insulation thickness 2.2 (mm)
電纜型號意義：
The meaning of cable model:
R：銅芯軟導體。
R: Copper core soft conductor.
V：聚氯乙烯絕緣。
V: Polyvinyl chloride insulation.
F：柔軟防腐性護套。
F: Soft and corrosion-resistant protective sheath.
P：銅絲編織屏蔽。
P: Copper wire braided shielding.
RVFP柔性屏蔽控制電纜特性：
Characteristics of RVFP flexible shielding control cable:
該電纜柔軟性能較好，抗拉，耐磨，防腐，屏蔽效果佳，抗氧化防紫外線及耐彎折性能，導體和屏蔽如果用鍍錫絲的情況下效果更好，鍍錫死抗氧化較強。
The cable has good flexibility, tensile strength, wear resistance, corrosion resistance, excellent shielding effect, oxidation resistance, UV resistance, and bending resistance. If tin plated wire is used for the conductor and shielding, the effect is even better, and tin plated wire has strong oxidation resistance.
RVFP柔性屏蔽控制電纜耐溫：
RVFP flexible shielding control cable temperature resistance:
耐低溫-30攝氏度，耐高溫145攝氏度。具有較強的抗老化性能。
Resistant to low temperatures of -30 degrees Celsius and high temperatures of 145 degrees Celsius. It has strong anti-aging performance.
規格：
Specifications:
正常線芯范圍為2-50芯0.2mm2-2.5mm2，也可按客戶要求增加線芯和導體大小。
The normal core range is 2-50 cores, 0.2mm2-2.5mm2, and the core and conductor sizes can also be increased according to customer requirements.
電纜定做尺寸可按客戶要求訂購，電纜尺寸誤差控制在******規定范圍內正負0.5%。
The customized size of cables can be ordered according to customer requirements, and the cable size error is controlled within the national standard range of plus or minus 0.5%.
顏色：≤0.5mm顏色表示，棕、黑、藍、紫、粉紅、橙
Color: ≤ 0.5mm Color representation, brown, black, blue, purple, pink, orange
≥0.5mm 黑色數字白色號碼編號，3芯以上帶有黃綠接地線
≥ 0.5mm black digit white number, 3-core or above with yellow green grounding wire
(黃綠可選)
(Yellow green optional)
屏蔽：鍍錫銅網編織屏蔽，密度80%以上。
Shielding: Tin plated copper mesh braided shielding with a density of over 80%.
護套：特殊改性PVC護套
Sheath: Special modified PVC sheath
橙色(RAL2003) 黑色(RAL9005) 灰色(RAL7001)
Orange (RAL2003) Black (RAL9005) Grey (RAL7001)
額定電壓：≥0.5mm：300/500V Rated voltage: ≥ 0.5mm: 300/500V測試電壓：2500V
Test voltage: 2500V
使用溫度范圍：固定安裝：-30℃至+70℃
Temperature range for use: Fixed installation: -30 ℃ to+70 ℃
移動安裝：-5℃至+70℃
Mobile installation: -5 ℃ to+70 ℃
***小彎曲半徑：固定安裝：4×電纜外徑
Minimum bending radius: Fixed installation: 4 x cable outer diameter
移動安裝：15×電纜外徑
Mobile installation: 15 x cable outer diameter
