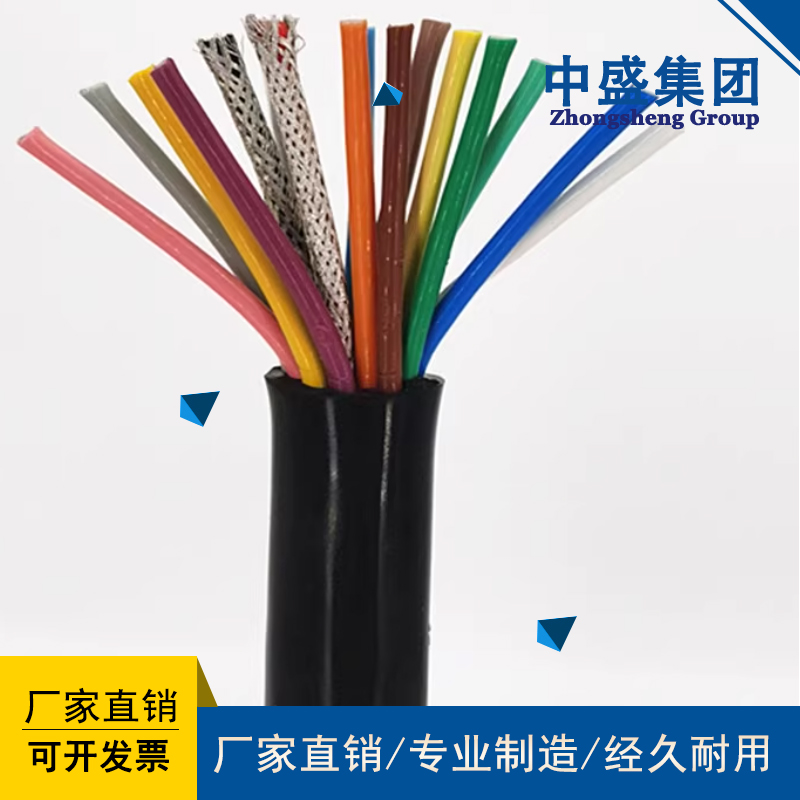

計算機電纜JVPV JVPV
Computer Cable JVPV JVPV
計算機電纜產品簡介：
Introduction to Computer Cable Products:
本產品適用于額定電壓500V及以下對于防干擾性要求較高的電子計算機和自動化連接用電纜。電纜地線芯絕緣采用具有抗氧化性能的K型B類低密度聚乙烯。聚乙烯的絕緣電阻高，耐電壓好，介電系數小和介質損耗溫度和變頻率的影響也小，不但能滿足傳輸性能的要求，而且能確保電纜的使用壽命。
This product is suitable for electronic computers and automation connection cables with high anti-interference requirements for rated voltage of 500V and below. The insulation of the cable ground wire core is made of K-type B-class low-density polyethylene with antioxidant properties. Polyethylene has high insulation resistance, good voltage resistance, low dielectric constant, and minimal temperature and frequency effects on dielectric loss. It not only meets the requirements of transmission performance, but also ensures the service life of cables.
為了減少回路間的相互串?dāng)_和外部干擾，電纜采用屏蔽結構。電纜的屏蔽要求是根據不同場合分別采用：對絞組合屏蔽、對絞組成電纜的總屏蔽、對絞組合屏蔽后總屏蔽等方法。
In order to reduce mutual crosstalk and external interference between circuits, the cable adopts a shielding structure. The shielding requirements for cables are based on different occasions, using methods such as twisted pair combination shielding, total shielding of twisted pair cables, and total shielding after twisted pair combination shielding.
屏蔽材料有圓銅線，銅帶、鋁帶/塑料復合帶三種。屏蔽對與屏蔽對具有較好的絕緣性能，電纜在使用中若屏蔽對屏蔽對之間出現電位差時，不會影響信號的傳輸質量。
There are three types of shielding materials: round copper wire, copper strip, and aluminum strip/plastic composite strip. Shielding pairs have good insulation performance, and if there is a potential difference between shielding pairs during cable use, it will not affect the quality of signal transmission.
計算機電纜技術參數：
Technical parameters of computer cables:
產品額定電壓(U0/U):300/500V
Rated voltage of the product (U0/U): 300/500V
長期工作溫度為70℃
The long-term working temperature is 70 ℃
敷設時環境溫度不低于:固定敷設-40℃,非固定敷設-15℃
The ambient temperature during installation shall not be lower than: -40 ℃ for fixed installation, -15 ℃ for non fixed installation
小彎曲半徑：無鎧裝層應小于電纜外徑的6倍，帶鎧裝層的電纜應不小于電纜外徑的12倍
Small bending radius: For unarmored cables, it should be less than 6 times the outer diameter of the cable, while for armored cables, it should be no less than 12 times the outer diameter of the cable
在20℃時用直流500V電壓試驗穩定充電1min后絕緣電阻應不小于2500MΩ·Km
The insulation resistance should not be less than 2500M Ω· Km after stable charging for 1 minute using a DC 500V voltage test at 20 ℃
各對絞屏蔽之間以及對絞屏蔽與總屏蔽之間應不斷路
There should be no open circuit between the paired shields and between the paired shields and the total shield
電纜的線芯和線芯之間以及屏蔽之間應經受50HZ，交流2000V電壓試驗5min不擊穿
The core to core and shielding of the cable should withstand a 50Hz, AC 2000V voltage test for 5 minutes without breakdown
計算機電纜型號以及用途：
Computer cable model and purpose:
DJYPV：聚乙烯絕緣對絞銅線編織分屏蔽聚氯乙烯護套計算機電纜 敷設室內、電纜溝、管道等要求靜電屏蔽場合
DJYPV: Polyethylene Insulated Twisted Copper Wire Braided Shielded Polyvinyl Chloride Sheath Computer Cable Laying Indoor, Cable Trench, Pipeline and Other Requirements Static Shielding Occasions
DJYVP：聚乙烯絕緣對絞銅線編織總屏蔽聚氯乙烯護套計算機電纜 敷設室內、電纜溝、管道等要求靜電屏蔽場合
DJYVP: Polyethylene insulated twisted pair copper wire braided total shielding PVC sheathed computer cable laying indoor, cable trench, pipeline and other requirements for electrostatic shielding occasions
DJYPVP：聚乙烯絕緣對絞銅線編織分屏蔽及總屏蔽聚氯乙烯護套計算機電纜 敷設室內、電纜溝、管道等要求靜電屏蔽場合
DJYPVP: Polyethylene insulated twisted pair copper wire braided shielding and total shielding PVC sheathed computer cable laying indoor, cable trench, pipeline and other requirements for electrostatic shielding occasions
DJYP2V：聚乙烯絕緣對絞銅帶分屏蔽聚氯乙烯護套計算機電纜 敷設室內、電纜溝、管道等要求靜電屏蔽場合
DJYP2V: Polyethylene insulated twisted pair copper tape shielded polyvinyl chloride sheathed computer cable laying indoor, cable trench, pipeline and other requirements for electrostatic shielding occasions
DJYVP2：聚乙烯絕緣對絞銅帶總屏蔽聚氯乙烯護套計算機電纜 敷設室內、電纜溝、管道等要求靜電屏蔽場合
DJYVP2: Polyethylene insulated twisted pair copper tape total shielding PVC sheathed computer cable laying indoor, cable trench, pipeline and other requirements for electrostatic shielding occasions
DJYP2VP2：聚乙烯絕緣對絞銅帶分屏蔽及總屏蔽聚氯乙烯護套計算機電纜 敷設室內、電纜溝、管道等要求靜電屏蔽場合
DJYP2VP2: Polyethylene Insulated Twisted Copper Tape Partial Shielding and Total Shielding PVC Sheath Computer Cable Laying Indoor, Cable Trench, Pipeline and Other Requirements Static Shielding Occasions
DJYP3V：聚乙烯絕緣對絞鋁塑復合帶分屏蔽聚氯乙烯護套計算機電纜 敷設室內、電纜溝、管道等要求靜電屏蔽場合
DJYP3V: Polyethylene insulated twisted pair aluminum-plastic composite tape shielded PVC sheathed computer cable laying indoor, cable trench, pipeline and other requirements for electrostatic shielding occasions
DJYVP3：聚乙烯絕緣對絞鋁塑復合帶總屏蔽聚氯乙烯護套計算機電纜 敷設室內、電纜溝、管道等要求靜電屏蔽場合
DJYVP3: Polyethylene insulated twisted pair aluminum-plastic composite tape, total shielding, polyvinyl chloride sheath, computer cable laying, indoor, cable trench, pipeline and other requirements for electrostatic shielding occasions
DJYP3VP3：聚乙烯絕緣對絞鋁塑復合帶分屏蔽及總屏蔽聚氯乙烯護套計算機電纜 敷設室內、電纜溝、管道等要求靜電屏蔽場合
DJYP3VP3: Polyethylene insulated twisted pair aluminum-plastic composite tape with partial and total shielding, PVC sheathed computer cable laying, indoor, cable trench, pipeline and other requirements for electrostatic shielding occasions
DJYPVR：聚乙烯絕緣對絞銅線編織分屏蔽聚氯乙烯護套軟計算機電纜 敷設室內、電纜溝、管道等要求靜電屏蔽場合
DJYPVR: Polyethylene insulated twisted pair copper wire braided shield PVC sheathed soft computer cable laying indoor, cable trench, pipeline and other requirements for electrostatic shielding occasions
DJYVPR：聚乙烯絕緣對絞銅線編織總屏蔽聚氯乙烯護套軟計算機電纜 敷設室內、電纜溝、管道等要求靜電屏蔽場合
DJYVPR: Polyethylene insulated twisted pair copper wire braided total shielding PVC sheathed soft computer cable laying indoor, cable trench, pipeline and other requirements for electrostatic shielding occasions
DJYPVPR：聚乙烯絕緣對絞銅線編織分屏蔽及總屏蔽聚氯乙烯護套軟計算機電纜 敷設室內、電纜溝、管道等要求靜電屏蔽場合
DJYPVPR: Polyethylene insulated twisted pair copper wire braided shielding and total shielding PVC sheathed soft computer cable laying indoor, cable trench, pipeline and other requirements for electrostatic shielding occasions
DJYP2VR：聚乙烯絕緣對絞銅帶分屏蔽聚氯乙烯護套軟計算機電纜 敷設室內、電纜溝、管道等要求靜電屏蔽場合
DJYP2VR: Polyethylene insulated twisted pair copper tape shielded PVC sheathed soft computer cable laying indoor, cable trench, pipeline and other requirements for electrostatic shielding occasions
DJYVP2R：聚乙烯絕緣對絞銅帶總屏蔽聚氯乙烯護套軟計算機電纜 敷設室內、電纜溝、管道等要求靜電屏蔽場合
DJYVP2R: Polyethylene insulated twisted pair copper tape, total shielding, polyvinyl chloride sheath, soft computer cable laying, indoor, cable trench, pipeline and other requirements for electrostatic shielding occasions
DJYP2VP2R：聚乙烯絕緣對絞銅帶分屏蔽及總屏蔽聚氯乙烯護套軟計算機電纜 敷設室內、電纜溝、管道等要求靜電屏蔽場合
DJYP2VP2R: Polyethylene insulated twisted pair copper tape with partial and total shielding, PVC sheathed soft computer cable laying, indoor, cable trench, pipeline and other requirements for electrostatic shielding occasions
DJYP3VR：聚乙烯絕緣對絞鋁塑復合帶分屏蔽聚氯乙烯護套軟計算機電纜 敷設室內、電纜溝、管道等要求靜電屏蔽場合
DJYP3VR: Polyethylene insulated twisted pair aluminum-plastic composite tape shielded PVC sheathed soft computer cable laying indoor, cable trench, pipeline and other requirements for electrostatic shielding occasions
DJYVP3R：聚乙烯絕緣對絞鋁塑復合帶總屏蔽聚氯乙烯護套軟計算機電纜 敷設室內、電纜溝、管道等要求靜電屏蔽場合
DJYVP3R: Polyethylene insulated twisted pair aluminum-plastic composite tape, total shielding, polyvinyl chloride sheath, soft computer cable laying, indoor, cable trench, pipeline and other requirements for electrostatic shielding occasions
DJYP3VP3R：聚乙烯絕緣對絞鋁塑復合帶分屏蔽及總屏蔽聚氯乙烯護套軟計算機電纜 敷設室內、電纜溝、管道等要求靜電屏蔽場合
DJYP3VP3R: Polyethylene insulated twisted pair aluminum-plastic composite tape with partial and total shielding, PVC sheathed soft computer cable laying, indoor, cable trench, pipeline and other requirements for electrostatic shielding occasions
DJYPV22：聚乙烯絕緣對絞銅線編織分屏蔽聚氯乙烯護套鋼帶鎧裝計算機電纜 敷設室內、電纜溝、管道等要求靜電屏蔽并承受較大機械外力固定場合
DJYPV22: Polyethylene Insulated Twisted Copper Wire Braided Shielded PVC Sheath Steel Tape Armored Computer Cable Laying Indoor, Cable Trenches, Pipelines and Other Requirements Static Shielding and Enduring Large Mechanical External Forces Fixed occasions
DJYVP22：聚乙烯絕緣對絞銅線編織總屏蔽聚氯乙烯護套鋼帶鎧裝計算機電纜 敷設室內、電纜溝、管道等要求靜電屏蔽并承受較大機械外力固定場合
DJYVP22: Polyethylene insulated twisted pair copper wire braided total shielding PVC sheathed steel tape armored computer cable laying indoor, cable trenches, pipelines, etc. require electrostatic shielding and withstand large mechanical external forces for fixed occasions
DJYPVP22：聚乙烯絕緣對絞銅線編織分屏蔽及總屏蔽聚氯乙烯護套鋼帶鎧裝計算機電纜 敷設室內、電纜溝、管道等要求靜電屏蔽并承受較大機械外力固定場合
DJYPVP22: Polyethylene Insulated Twisted Copper Wire Braided Shielding and Total Shielding Polyvinyl Chloride Sheath Steel Tape Armored Computer Cable Laying Indoor, Cable Trenches, Pipelines, etc. Requirements for Static Shielding and Enduring Large Mechanical External Forces in Fixed Environments
DJYP2V22：聚乙烯絕緣對絞銅帶分屏蔽聚氯乙烯護套鋼帶鎧裝計算機電纜 敷設室內、電纜溝、管道等要求靜電屏蔽并承受較大機械外力固定場合
DJYP2V22: Polyethylene insulated twisted pair copper tape shielded polyvinyl chloride sheathed steel tape armored computer cable laying indoors, cable trenches, pipelines, etc. require electrostatic shielding and withstand large mechanical external forces for fixed occasions
