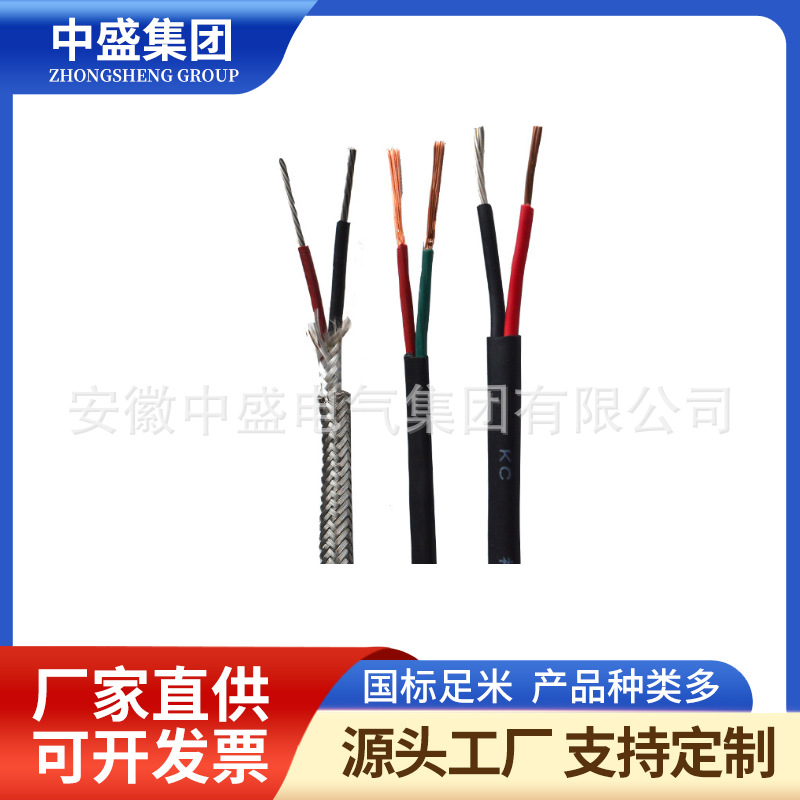

產品名稱：KX-GS-VVP precision thermocouple compensation cable
瀏覽：
添加時間：2025-05-07 16:50:58
推薦度：

介紹：

產品簡介

Product Introduction

KX-GS-VVP精密級K分度熱電偶用補償電纜：1、工作溫度：耐熱用：Z高200℃和260℃兩種。一般用：Z高70℃和105℃兩種。2、Z低環境溫度：氟塑料絕緣和護套線纜：固定敷設- 60℃，非固定敷設-20℃。聚氯乙烯絕緣和護 套線纜：固定敷設-40℃，非固定敷設-15℃。

Compensation cable for KX-GS-VVP precision grade K-division thermocouple: 1. Operating temperature: heat-resistant: available in two types: Z-high 200 ℃ and 260 ℃. Generally used: Z high 70 ℃ and 105 ℃. 2. Low ambient temperature: Fluoroplastic insulated and sheathed cables: fixed installation -60 ℃, non fixed installation -20 ℃. Polyvinyl chloride insulated and sheathed cables: fixed installation at -40 ℃, non fixed installation at -15 ℃.

產品介紹

Product Introduction

使用條件：

Usage conditions:

1、工作溫度：耐熱用：zui高200℃和260℃兩種。一般用：zui高70℃和105℃兩種。

1. Working temperature: heat-resistant, available in two types: 200 ℃ and 260 ℃. Generally used: maximum temperature of 70 ℃ and 105 ℃.

2、zui低環境溫度：氟塑料絕緣和護套線纜：固定敷設- 60℃，非固定敷設-20℃。聚氯乙烯絕緣和護 套線纜：固定敷設-40℃，非固定敷設-15℃。

2. Zui low ambient temperature: Fluoroplastic insulated and sheathed cables: fixed laying -60 ℃, non fixed laying -20 ℃. Polyvinyl chloride insulated and sheathed cables: fixed installation at -40 ℃, non fixed installation at -15 ℃.

3、允許彎曲半徑：

3. Allowable bending radius:

a）有銅帶屏蔽的補償電纜，應不小于電纜外徑的16倍；

a) Compensation cables with copper tape shielding should not be less than 16 times the outer diameter of the cable;

b）其它結構的補償電纜，應不小于電纜外徑的10倍。

b) Compensation cables of other structures should not be less than 10 times the outer diameter of the cable.

一）補償導線

1） Compensation wire

型號

model

名稱

name

KX-GS-VV

聚氯乙烯絕緣和護套一般用精密級K分度熱電偶用補償導線

Polyvinyl chloride insulation and sheath are generally compensated with precision grade K-grade thermocouples using compensating wires

KX-GS-VPV

聚氯乙烯絕緣和護套銅絲編織屏蔽一般用精密級K分度熱電偶用屏蔽補償導線

PVC insulation and sheath copper wire braided shielding are generally used for precision grade K-division thermocouples with shielding compensation wires

KX-HS-FF

氟塑料絕緣和護套耐熱用精密級K分度熱電偶用高溫補償導線

Fluoroplastic insulation and sheath, heat-resistant, precision grade K division thermocouple, high temperature compensation wire

KX-HS-FP1F

氟塑料絕緣和護套鍍錫銅絲編織屏蔽耐熱用精密級K分度熱電偶用高溫補償導線

Fluoroplastic insulation and sheath, tinned copper wire braided shielding, heat-resistant, precision grade K division thermocouple, high temperature compensation wire

KX-HS-FB

聚四氟絕緣、玻璃絲編織護套耐熱用精密級K分度熱電偶用高溫補償導線

High temperature compensation wire for precision K-grade thermocouples with polytetrafluoroethylene insulation and glass fiber braided sheath for heat resistance

KX-HS-FBP1

聚四氟乙烯帶繞包絕緣玻璃絲編織，鍍錫銅絲編織屏蔽，玻璃絲編織外護套耐熱用精密級K分度熱電偶用高溫補償導線

PTFE tape wrapped insulation glass fiber weaving, tin plated copper wire weaving shielding, glass fiber weaving outer sheath heat-resistant precision grade K division thermocouple high-temperature compensation wire

KX-HS-FP1V105

氟塑料絕緣鍍錫銅絲編織屏蔽耐熱105℃聚氯乙烯護套耐熱用精密級K分度熱電偶用高溫補償導線

Fluoroplastic insulation, tin plated copper wire braided shield, heat-resistant 105 ℃ polyvinyl chloride sheath, heat-resistant, precision grade K division thermocouple, high-temperature compensation wire

注：普通級補償導線型號表示方法：在精密級補償導線型號基礎上去掉字母“S”即可（下同）。

Note: The method for representing the model of ordinary compensating wires is to remove the letter "S" from the model of precision compensating wires (the same below).

KX-GS-VPV補償導線型號說明：

KX-GS-VPV compensation wire model description:

型號

model

名稱

name

KX-GS-VV

聚氯乙烯絕緣對絞聚氯乙烯護套一般用精密級K分度熱電偶用補償電纜

Polyvinyl chloride insulation twisted pair polyvinyl chloride sheath is generally used as compensation cable for precision grade K-division thermocouples

KX-GS-VPV

聚氯乙烯絕緣對絞銅絲編織分屏蔽聚氯乙烯護套一般用精密級K分度熱電偶用補償電纜

Polyvinyl chloride insulated twisted copper wire braided shielded polyvinyl chloride sheath is generally used for precision grade K-index thermocouples with compensating cables

KX-GS-VPVP

聚氯乙烯絕緣對絞銅絲編織分屏蔽和總屏蔽聚氯乙烯護套一般用精密級K分度熱電偶用補償電纜

Polyvinyl chloride insulated twisted copper wire braided partial shielding and total shielding. Polyvinyl chloride sheath is generally used for precision grade K-index thermocouples and compensating cables

KX-GS-VVP

聚氯乙烯絕緣對絞銅絲編織總屏蔽聚氯乙烯護套一般用精密級K分度熱電偶用補償電纜

Polyvinyl chloride insulated twisted copper wire braided total shielding polyvinyl chloride sheath is generally used for precision grade K-index thermocouples with compensating cables

KX-HS-FF

氟塑料絕緣對絞氟塑料護套精密級K分度熱電偶用高溫補償電纜

Fluoroplastic insulated twisted pair fluoroplastic sheathed precision grade K division thermocouple high temperature compensation cable

KX-HS-FP1F

氟塑料絕緣對絞鍍錫銅絲編織分屏蔽氟塑料護套精密級K分度熱電偶用高溫補償電纜

Fluoroplastic insulated twisted pair tinned copper wire braided shielded fluoroplastic sheathed precision grade K index thermocouple high temperature compensation cable

KX-HS-FP1FP1

氟塑料絕緣對絞鍍錫銅絲編織分屏蔽和總屏蔽氟塑料護套精密級K分度熱電偶用高溫補償電纜

Fluoroplastic insulated twisted pair tinned copper wire braided shielding and total shielding fluoroplastic sheathed precision grade K index thermocouple high temperature compensation cable

KX-HS-FFP1

氟塑料絕緣對絞鍍錫銅絲編織總屏蔽氟塑料護套精密級K分度熱電偶用高溫補償電纜

Fluoroplastic insulated twisted pair tinned copper wire braided total shielding fluoroplastic sheath precision grade K division thermocouple high temperature compensation cable

KX-HS-FV105

氟塑料絕緣對絞耐熱105℃聚氯乙烯護套精密級K分度熱電偶用高溫補償電纜

Fluoroplastic insulated twisted pair heat-resistant 105 ℃ polyvinyl chloride sheathed precision grade K index thermocouple high temperature compensation cable

KX-HS-FP1V105

氟塑料絕緣對絞鍍錫銅絲編織分屏蔽耐熱105℃聚氯乙烯護套精密級K分度熱電偶用高溫補償電纜

Fluoroplastic insulated twisted pair tinned copper wire braided shielded heat-resistant 105 ℃ polyvinyl chloride sheathed precision grade K index thermocouple high temperature compensation cable

KX-HS-FP1V105P1

氟塑料絕緣對絞鍍錫銅絲編織分屏總屏蔽耐熱105℃聚氯乙烯護套精密級K分度熱電偶用高溫補償電纜

Fluoroplastic insulated twisted pair tinned copper wire braided split screen total shielding heat-resistant 105 ℃ polyvinyl chloride sheathed precision grade K index thermocouple high temperature compensation cable

KX-HS-FV105P1

氟塑料絕緣對絞鍍錫銅絲編織總屏蔽耐熱105℃聚氯乙烯護套精密級K分度熱電偶用高溫補償電纜

Fluoroplastic insulated twisted pair tinned copper wire braided total shielding heat-resistant 105 ℃ polyvinyl chloride sheathed precision grade K index thermocouple high temperature compensation cable

注：

Note:

1、其它型號補償導線如：KC、JX、SC、EX、NC、TX等，只需改寫型號的*項，如：EX-G-VV、TX-H-FVP等；

1. For other types of compensating wires such as KC, JX, SC, EX, NC, TX, etc., simply modify the * item of the model, such as EX-G-VV, TX-H-FVP, etc;

2、需導體為多股軟芯時，應在原型號后加“R”表示，如：TX-G-VVPR；

2. When the conductor needs to be a multi strand soft core, an "R" should be added after the prototype number, for example: TX-G-VVPR；

3、還可根據需要提供聚乙烯（Y）絕緣、交聯聚乙烯（YJ）絕緣補償電纜。

3. Polyethylene (Y) insulation and cross-linked polyethylene (YJ) insulation compensation cables can also be provided as needed.

4、補償電纜屏蔽層也可采用金屬帶繞包形式，如：復合鋁帶（P3）、復合銅帶（P2）；

4. The shielding layer of compensation cables can also be wrapped with metal strips, such as composite aluminum strips (P3) and composite copper strips (P2);

5、需阻燃型補償電纜，應在原型號前加“ZR-”。

5. Flame retardant compensating cables should have "ZR -" added before the prototype number.

6、需鎧裝型補償電纜，應在原型號后加“-22”表示鋼帶鎧裝；加“-32”表示鋼絲鎧裝。

6. For armored compensating cables, "-22" should be added after the prototype number to indicate steel tape armor; Add "-32" to indicate steel wire armor.
